Remote Transmitter Disassembly/Assembly: Disassembly

  1. Press the knob on the remote transmitter and pull the auxiliary key out.
    G13114669Courtesy of MAZDA MOTORS CORP.

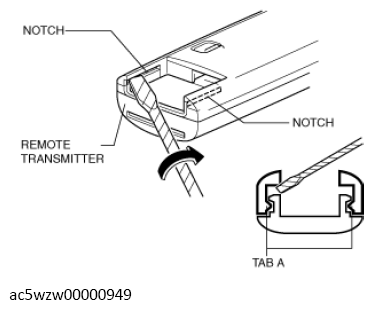

  2. Insert a tape-wrapped flathead screwdriver into the notch on the remote transmitter and turn it in the direction of the arrow shown in the figure to detach tabs A from the remote transmitter.
    G13114670Courtesy of MAZDA MOTORS CORP.

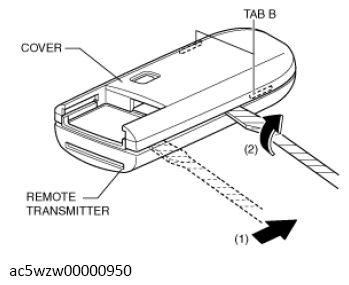

  3. Insert a tape-wrapped flathead screwdriver between the remote transmitter and the cover and slide it in the direction of arrow (1) shown in the figure.
    G13114671Courtesy of MAZDA MOTORS CORP.
  4. Turn the screwdriver in the direction of arrow (2) shown in the figure to detach tabs B of the cover from the remote transmitter.
  5. Remove the cover.
  6. Remove the cap and the battery from the remote transmitter.
    G13114672Courtesy of MAZDA MOTORS CORP.
