Request Switch Inspection: Liftgate

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the request switch. (See REQUEST SWITCH REMOVAL/INSTALLATION .)

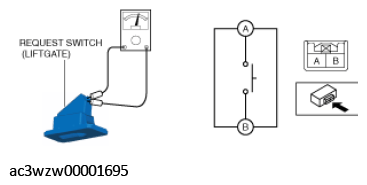

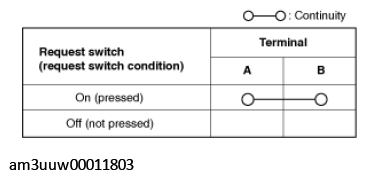

Verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the request switch. (See REQUEST SWITCH REMOVAL/INSTALLATION .)
