Request Switch Removal/Installation: Liftgate

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

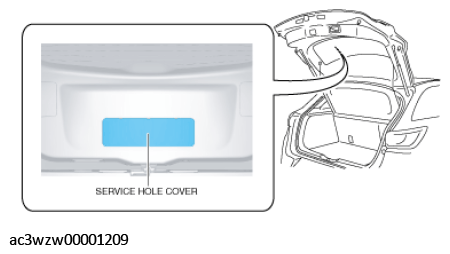

  2. Remove the service hole cover.
    G11472775Courtesy of MAZDA MOTORS CORP.

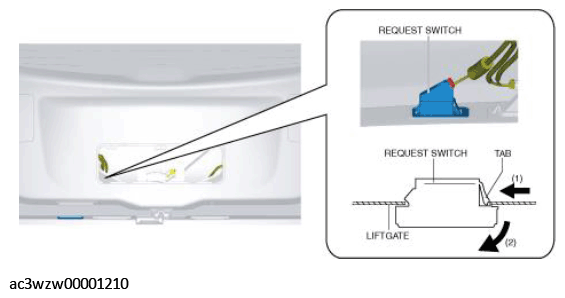

  3. While pressing the request switch tab in the direction of arrow (1) shown in the figure, move the request switch in the direction of arrow (2), and detach the request switch tab from the liftgate.
    G11472776Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector and remove the request switch.
    G11472777Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
