Clip Replacement Note

If the clip has been damaged, perform the following procedure.

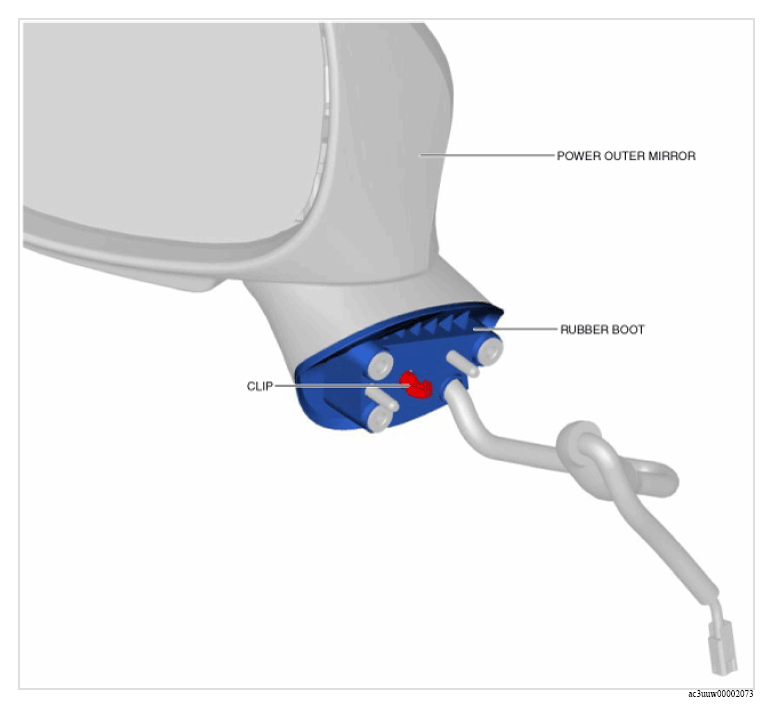

Remove the rubber boot.

Courtesy of MAZDA MOTORS CORP.

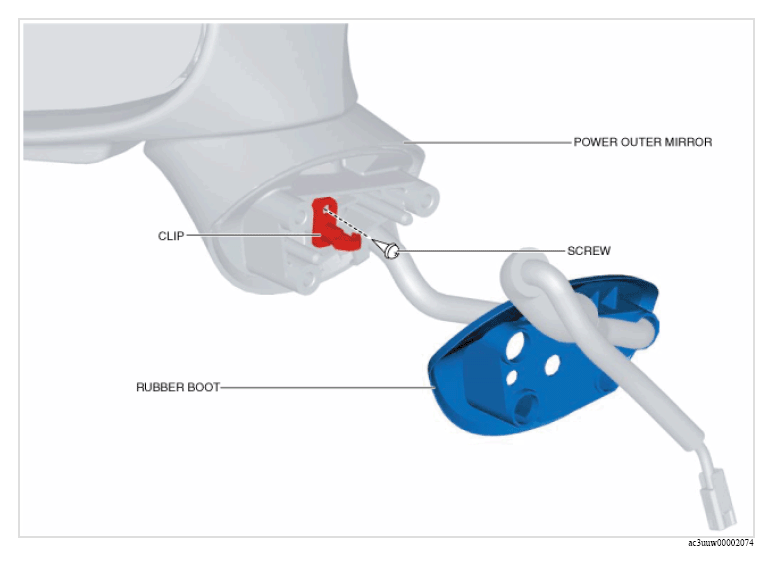

Remove the screw.

Courtesy of MAZDA MOTORS CORP.
Remove the clip.
Install in the reverse order of removal.
