Driver-Side Door Glass Can Be Operated Manually But Cannot Be Operated Automatically: Notes
DRIVER-SIDE DOOR GLASS CAN BE OPERATED MANUALLY BUT CANNOT BE OPERATED AUTOMATICALLY (POWER WINDOW SYSTEM) POSSIBLE CAUSE
| Description |
Driver-side door glass cannot be operated automatically but can be operated manually using power window main switch |
| Possible Causes |
- Power window main switch malfunction
- Power window motor malfunction

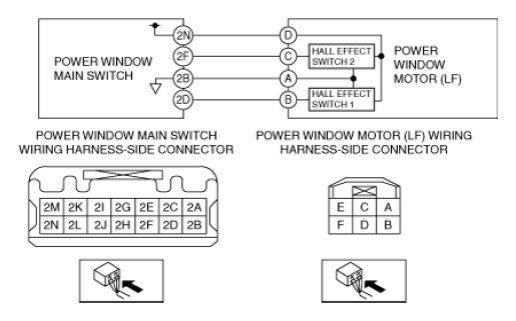

- Open circuit in wiring harness between the following terminals:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 2B and power window motor terminal A
- Power window main switch terminal 2F and power window motor terminal C
- Power window main switch terminal 2N and power window motor terminal D
- Short to ground in wiring harness between the following terminals:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 2F and power window motor terminal C
- Power window main switch terminal 2N and power window motor terminal D
- Short to power supply in wiring harness between the following terminals:
- Power window main switch terminal 2D and power window motor terminal B
- Power window main switch terminal 2F and power window motor terminal C
- Connector poor contact or terminal damage
|
 Courtesy of MAZDA MOTORS CORP.
|
