Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

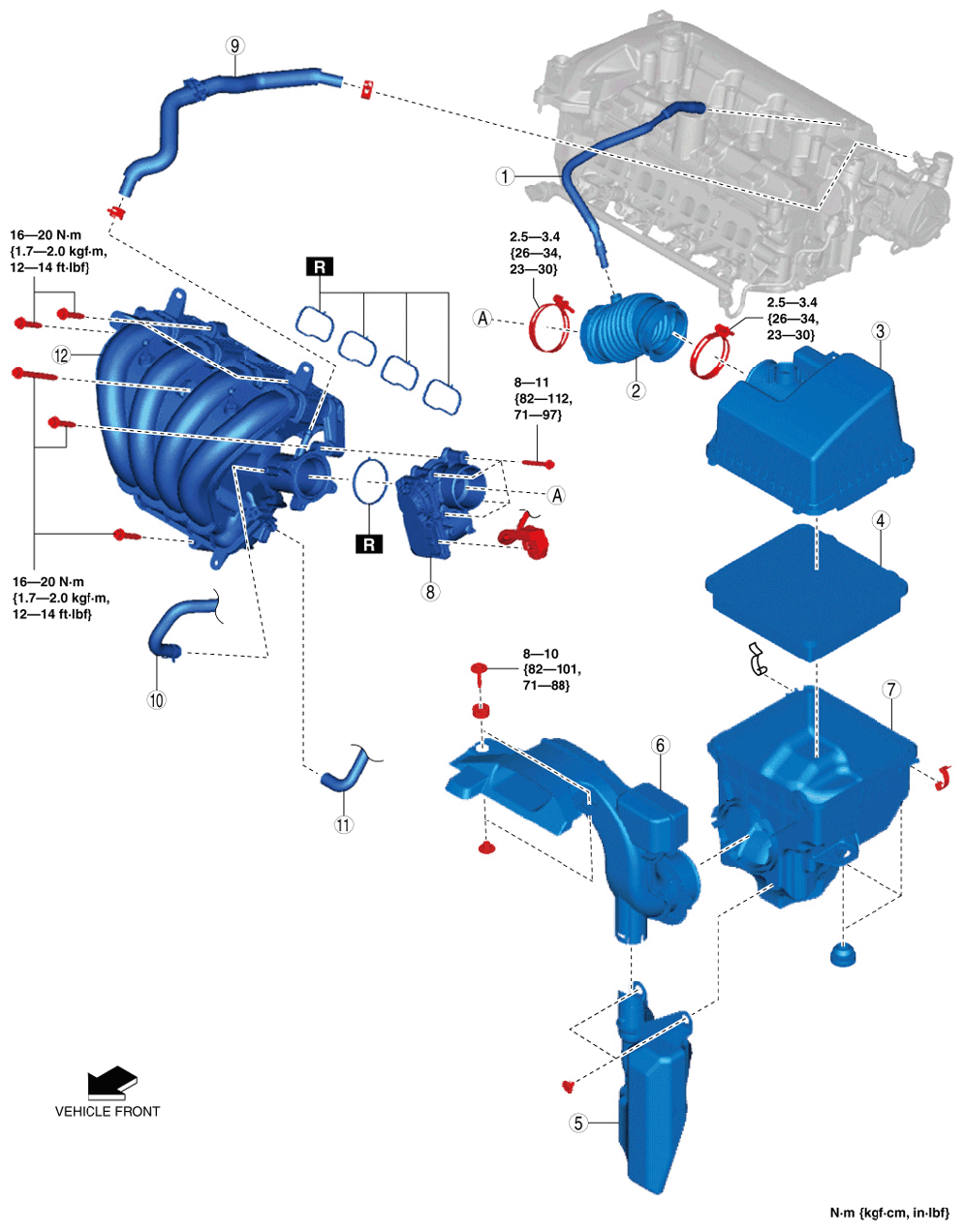

- Remove in the order indicated in the graphic.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Ventilation hose
(See Ventilation Hose Installation Note .)2 Air hose
(See Air Hose Installation Note )3 Air cleaner cover
(See Air Cleaner Cover Installation Note )4 Air cleaner element 5 Resonance chamber
(See Resonance Chamber Removal Note .)6 Fresh-air duct
(See Fresh-air Duct Removal Note .)7 Air cleaner case
(See Air Cleaner Case Installation Note .)8 Throttle body 9 Vacuum hose
(See Vacuum Hose Removal Note .)
(See Vacuum Hose Installation Note .)10 Evaporative hose
(See Evaporative Hose Installation Note )11 PCV hose 12 Intake manifold
(See Intake Manifold Removal Note )
