Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] .)
  2. Remove in the order indicated in the table.

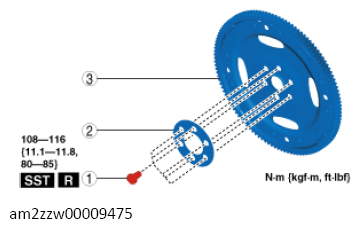

    Fig 1: Drive Plate Components With Torque Specification
    G13150590Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Drive plate installation bolts
    (See Drive Plate Installation Bolts Removal Note .)
    (See Drive Plate Installation Bolts Installation Note .)
    2 Backing plate
    3 Drive plate
  3. Install in the reverse order of removal.
