Rearview Mirror Removal/Installation

  1. Remove the sensor cover. (with sensor cover) (See SENSOR COVER REMOVAL/INSTALLATION .)
  2. Loosen the screw.

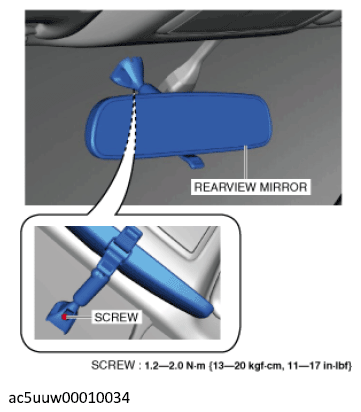

    Fig 1: Rearview Mirror Screw With Torque Specification
    G12183824Courtesy of MAZDA MOTORS CORP.

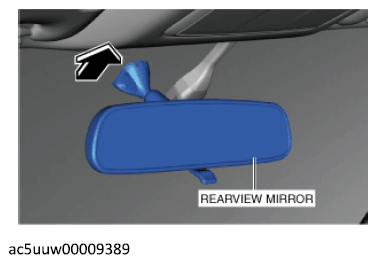

  3. Pull the rearview mirror in the direction of the arrow shown in the figure.
    G12183825Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
