  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

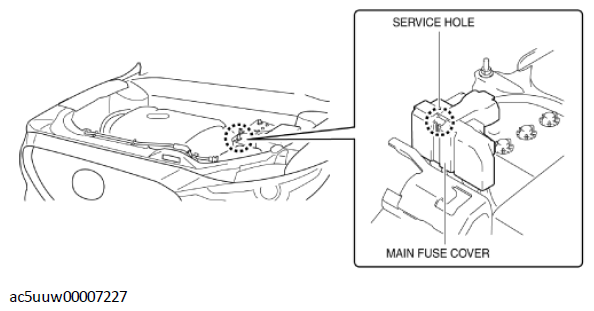

  2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
    G11426327Courtesy of MAZDA MOTORS CORP.

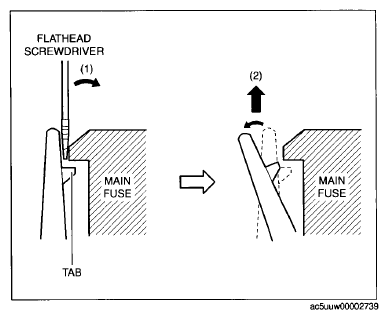

  3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull up the main fuse cover in the direction of the arrow (2) shown in the figure, and detach the main fuse cover tab from the main fuse.
    G09077799Courtesy of MAZDA MOTORS CORP.

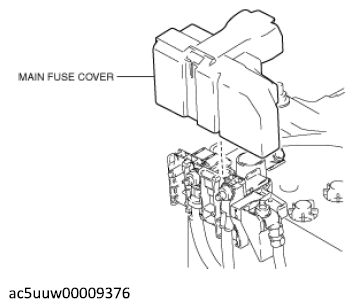

  4. Remove the main fuse cover.
    G12189813Courtesy of MAZDA MOTORS CORP.
  5. Remove the nuts.

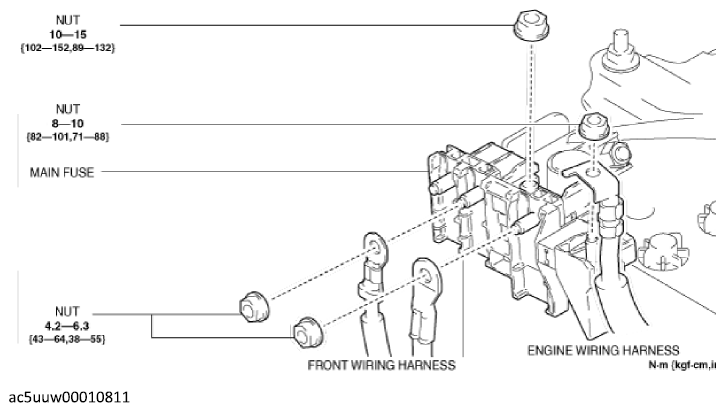

    Fig 1: Main Fuse Nuts With Torque Specification
    G12189814Courtesy of MAZDA MOTORS CORP.
  6. Remove the main fuse.
  7. Install in the reverse order of removal.
