VIN M

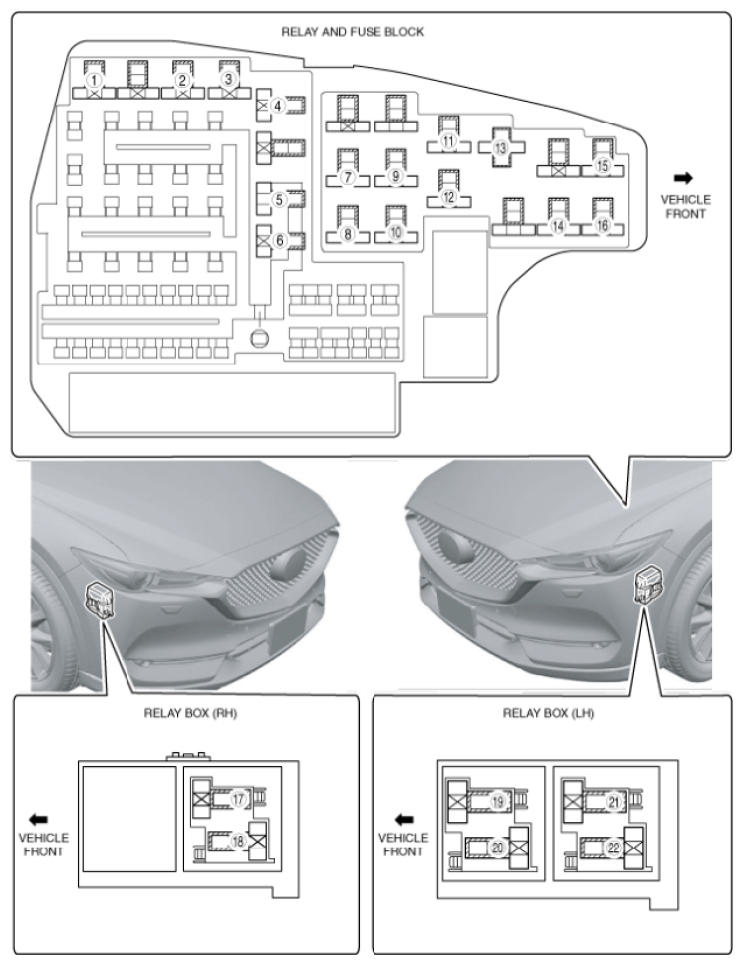

Fig 1: Fuse Block And Relay Block Relay Identification (VIN M)

Courtesy of MAZDA MOTORS CORP.

FUSE BLOCK AND RELAY BLOCK RELAY IDENTIFICATION (VIN M)

Relay Number	Relay Description
1	Rear window defogger relay
2	Steering warmer relay
3	Electric variable valve timing relay
4	Fuel injector relay (without coolant control valve) Sub relay (with coolant control valve)
5	Headlight LO relay No. 1
6	IG1 relay
7	Headlight HI relay
8	Starter relay
9	ACC relay
10	Front fog light relay
11	Horn relay
12	TNS relay
13	Blower relay
14	DRL relay
15	Windshield wiper de-icer relay
16	Cooling fan relay No. 3
17	Cooling fan relay No. 1
18	Cooling fan relay No. 2
19	Main relay
20	Headlight LO relay No. 2
21	A/C relay
22	Fuel pump relay
