USB Power Outlet Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

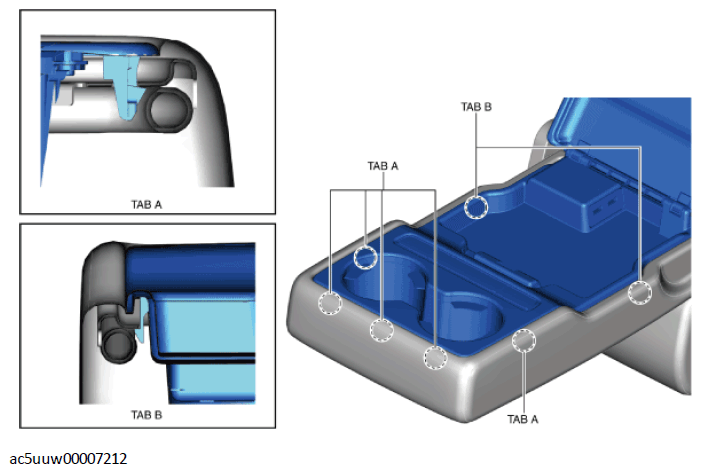

  2. Detach the tray tab from the rear seat center armrest, and remove the tray from the rear seat center armrest.
    G11426372Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.
    G11426373Courtesy of MAZDA MOTORS CORP.
  4. While pressing the USB power outlet tabs in the direction of arrows (1) shown in the figure, press the USB power outlet in the direction of arrow (2) to detach the USB power outlet from the tray.
    G11426374Courtesy of MAZDA MOTORS CORP.
  5. Remove the USB power outlet.
    G11426375Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
