Instrument Cluster Disassembly/Assembly

CAUTION:
  • If the instrument cluster is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the instrument cluster, perform the procedure on a workbench on clean clothes being careful not to drop it.
  1. Disassemble in the order indicated in the table.

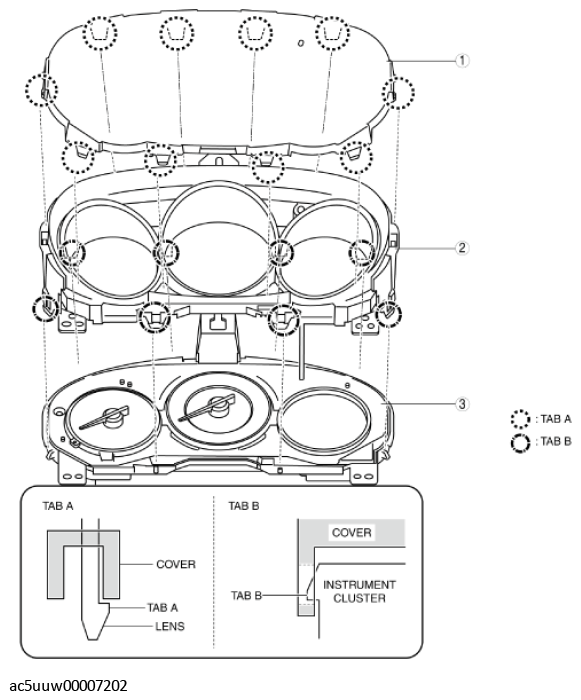

    G11427805Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Lens
    2 Cover
    3 Instrument cluster
  2. Assemble in the reverse order of disassembly.
