Audio Unit Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

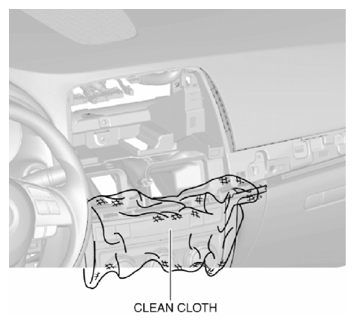

When installing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

Fig 1: Identifying Audio Unit

Courtesy of MAZDA MOTORS CORP.

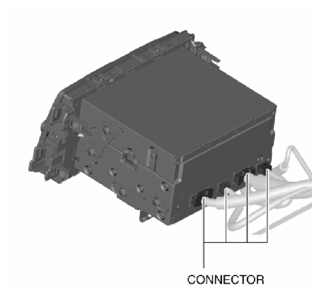

Connect all the connectors.

Fig 2: Connecting Connectors
Courtesy of MAZDA MOTORS CORP.

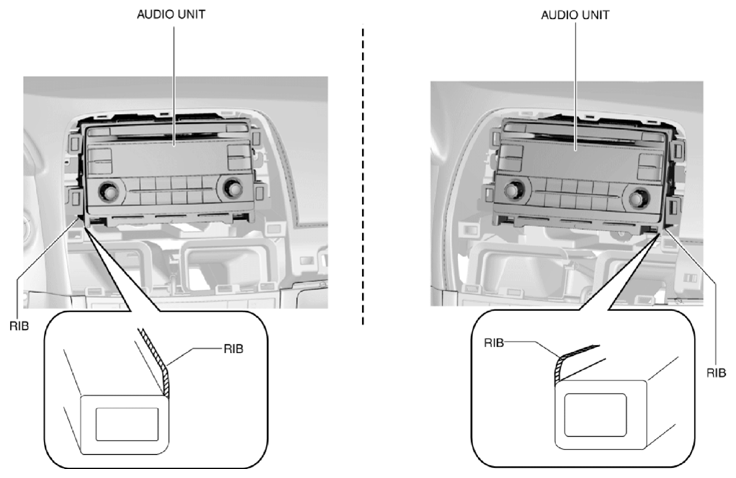

Temporarily position the audio unit on the ribs and align the hole positions of the instrument panel with clips.

Fig 3: Positioning Audio Unit On Ribs
Courtesy of MAZDA MOTORS CORP.

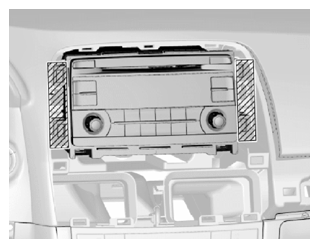

Press the audio unit in the position shown in the figure and engage clips to the instrument panel.

Fig 4: Identifying Audio Unit Position
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the audio unit switch area and screen are pressed it could cause a malfunction.

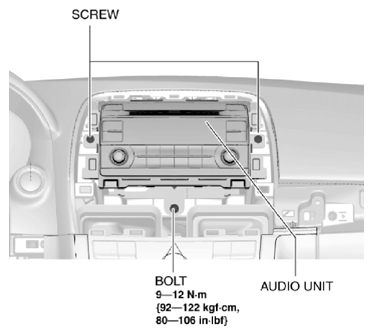

Install the screws.

Fig 5: Installing Audio Unit Screws
Courtesy of MAZDA MOTORS CORP.
Install the bolt.
Install the following parts:
1. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
