Tweeter Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the screws.

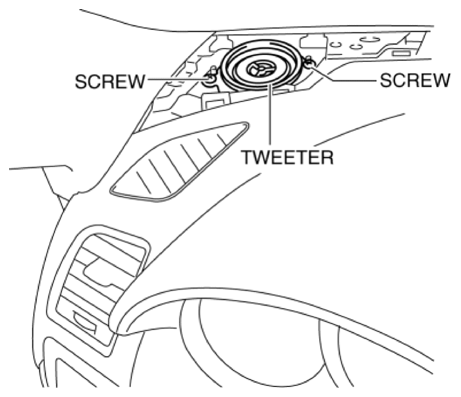

Fig 1: Removing Tweeter Screws
Courtesy of MAZDA MOTORS CORP.
Pull out the tweeter and disconnect the connector.

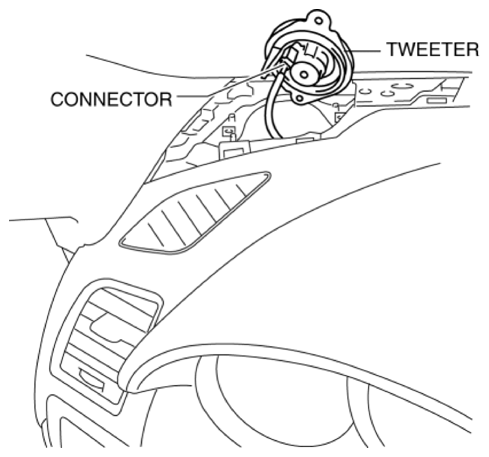

Fig 2: Pulling Out Tweeter
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
