Intake Manifold Removal Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the MAP sensor/IAT sensor No. 2. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)

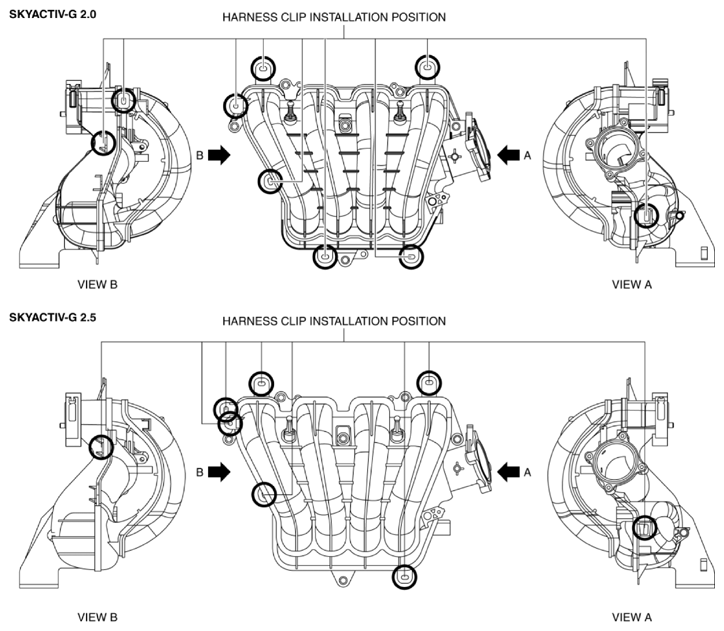

- Disconnect the harness clip from the intake manifold as shown in the figure.
- Remove the intake manifold.
