Pre-Inspection Preparation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips.

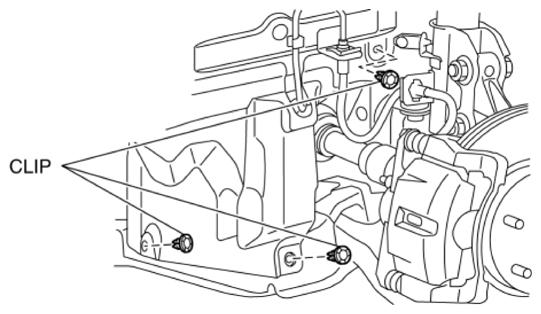

    Fig 1: Identifying Clips
    G10936863Courtesy of MAZDA MOTORS CORP.
  2. Set the splash shield out of the way.
  3. Disconnect the brake pipe from the brake hose.

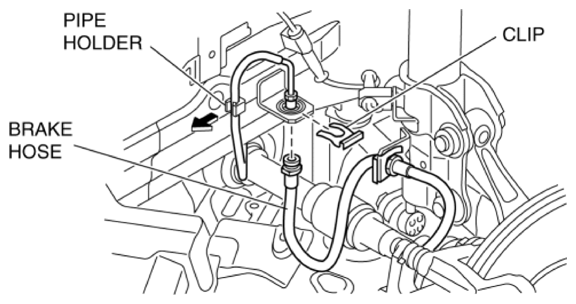

    Fig 2: Disconnecting Brake Pipe From Brake Hose
    G10936864Courtesy of MAZDA MOTORS CORP.
  4. Remove the clip.
  5. Remove the brake hose from the bracket.
  6. Detach the brake pipe from the pipe holder.
  7. Install the SST  to the brake pipe as shown in the figure.

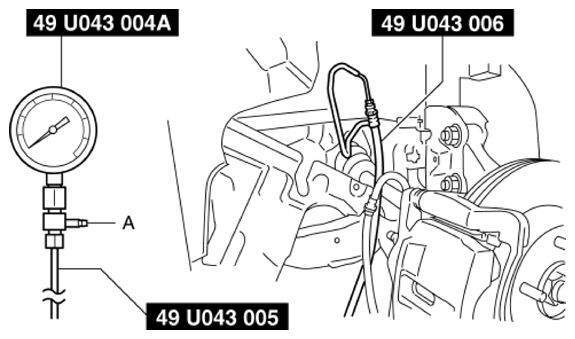

    Fig 3: Installing SST To Brake Pipe
    G10936865Courtesy of MAZDA MOTORS CORP.
  8. Bleed the brake line and the SSTs  of air. Bleed the air form the SSTs  using bleeder screw A.
  9. Install the pedal force gauge to the brake pedal.
  10. Connect the vacuum gauge to the vacuum line.
