Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to remove the clip from the auto leveling sensor.

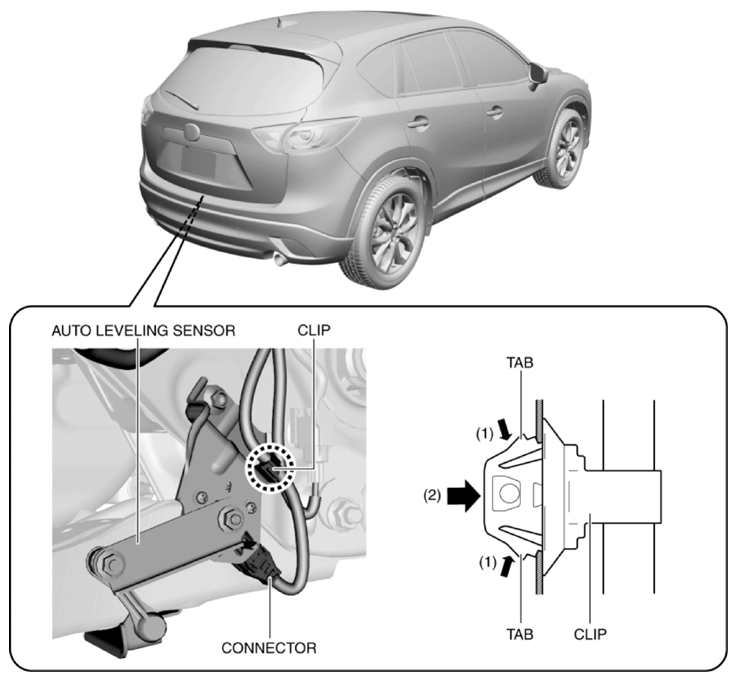

Fig 1: Pressing Clip Tabs
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the bolts.

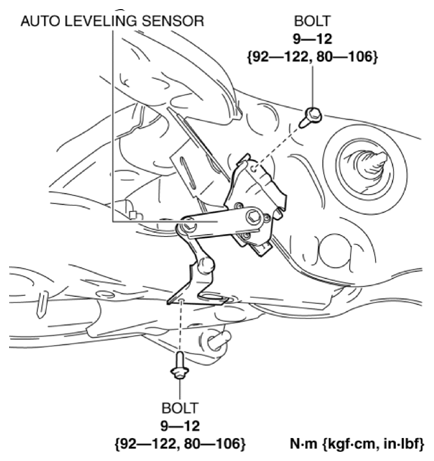

Fig 2: Removing Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the auto leveling sensor.

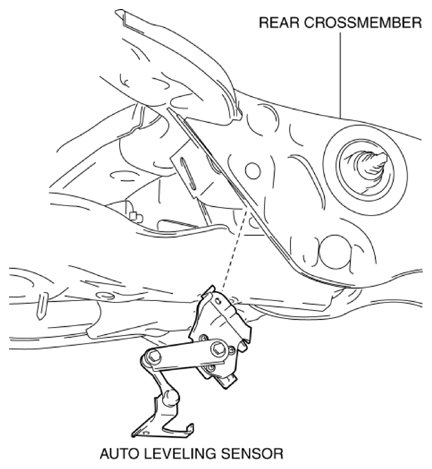

Fig 3: Removing Auto Leveling Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform the auto leveling system initial setting. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
