Precautions Before Welding: Notes

  1. Switch the ignition off (LOCK).

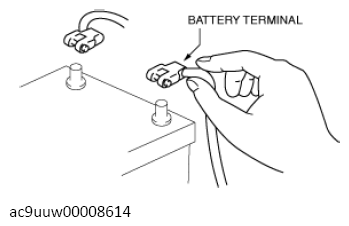

  2. Disconnect the battery terminals.
    G13555999Courtesy of MAZDA MOTORS CORP.
  3. Securely connect the welding machine ground near the welding area.
    G13148624Courtesy of MAZDA MOTORS CORP.
  4. Cover the peripheral parts of the welding area to protect them from weld spatter.
