Keyless Receiver Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (RH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

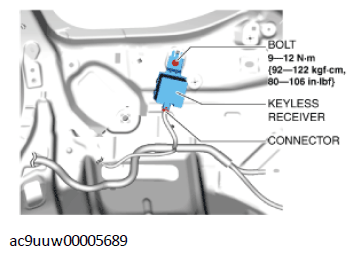

    Fig 1: Keyless Receiver Bolt With Torque Specification
    G11432736Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
