Clip Replacement Note

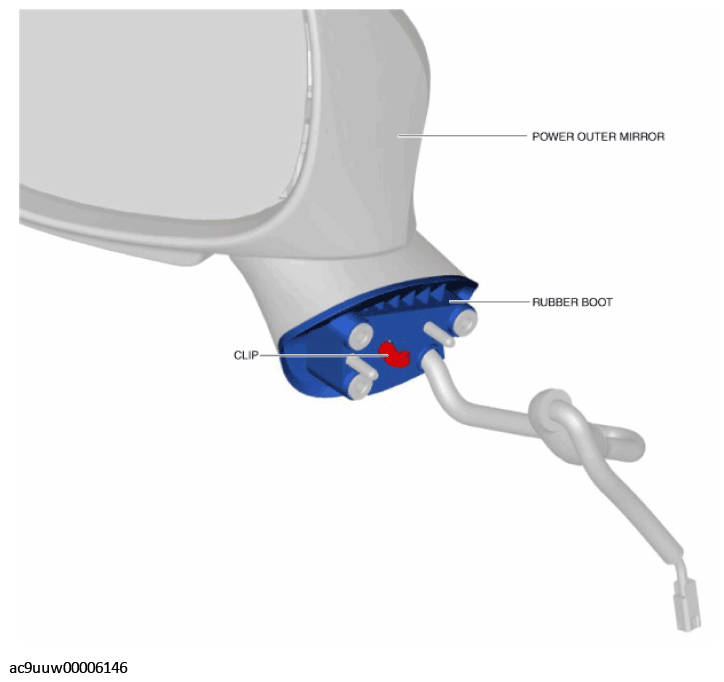

  1. Remove the rubber boot.
    G11434708Courtesy of MAZDA MOTORS CORP.

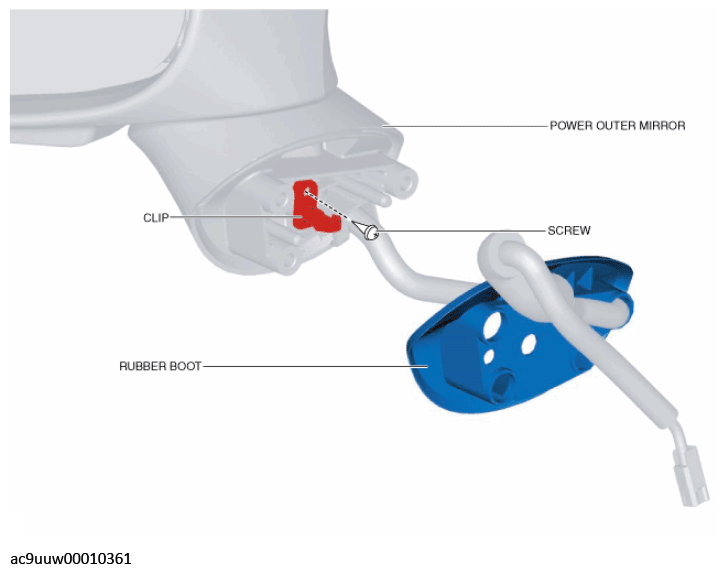

  2. Remove the screw.
    G12265542Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install in the reverse order of removal.
