Rear Door Sunshade Removal/Installation: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

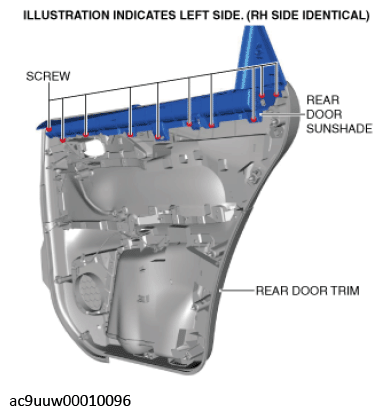

  3. Remove the screws.
    G12265569Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear door sunshade.

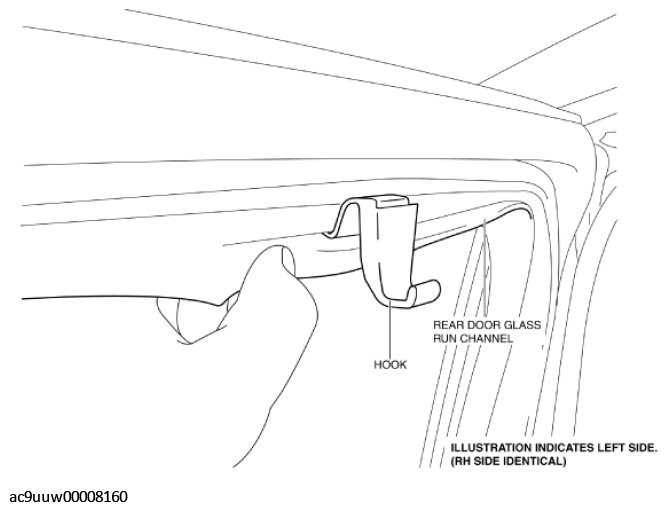

  5. Partially peel back the rear door glass run channel.
    G11434737Courtesy of MAZDA MOTORS CORP.

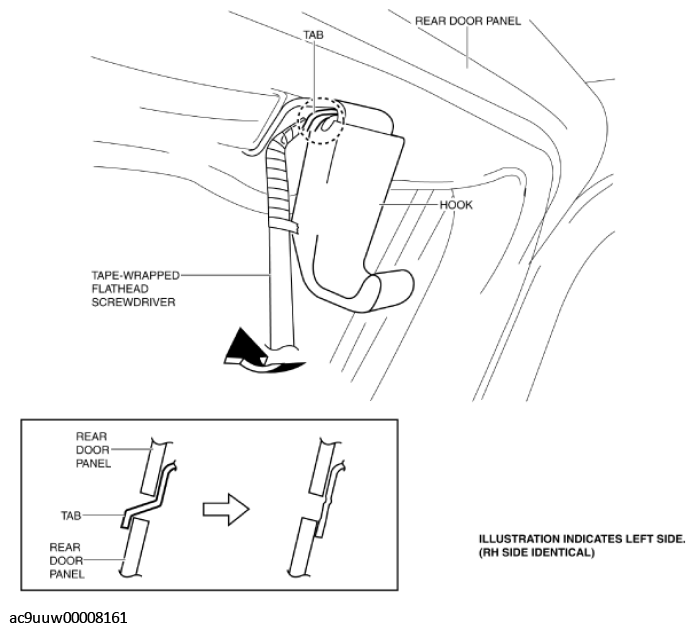

  6. Insert the tape-wrapped flat head screwdriver into the position shown in the figure.
    G11434738Courtesy of MAZDA MOTORS CORP.
  7. Move the tape-wrapped flat head screwdriver in the direction of the arrow shown in the figure and detach the tab from the rear door panel.
  8. Remove the hook.
  9. Install in the reverse order of removal. (See Rear Door Sunshade Installation Note .)
