Home >> Mazda >> 2021 >> CX-9 Signature >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Rear Power Window Motor Removal/Installation >> Notes

Rear Power Window Motor Removal/Installation: Notes

  1. Fully open the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

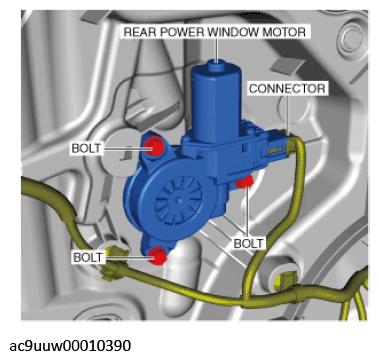

    G12265576Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts.
  7. Remove the rear power window motor.
  8. Install in the reverse order of removal. (See Rear Power Window Motor Installation Note .)
