Bolt and Nuts Installation Note

Install the bolt and nuts in the order shown in the figure.

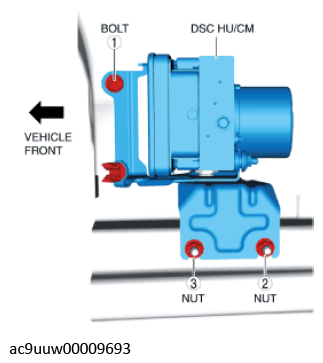

Fig 1: DSC HU/Control Module Bolt And Nuts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
