Brake Pipe Installation Note

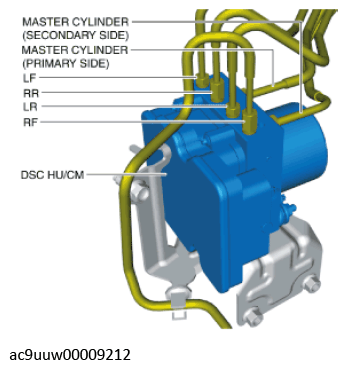

  1. Align the marks made before removal and install the brake pipe to the DSC HU/Control Module and brake pipe joint referring to the figure.
    G11433112Courtesy of MAZDA MOTORS CORP.
  2. Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.
