Home >> Mazda >> 2021 >> CX-9 Signature >> Repair and Diagnosis >> Brakes >> Traction Control >> Dynamic Stability Control System (Service Information) >> Front Abs Wheel-Speed Sensor Removal/Installation >> Connector Disconnection Note

Connector Disconnection Note

  1. Remove the fasteners.

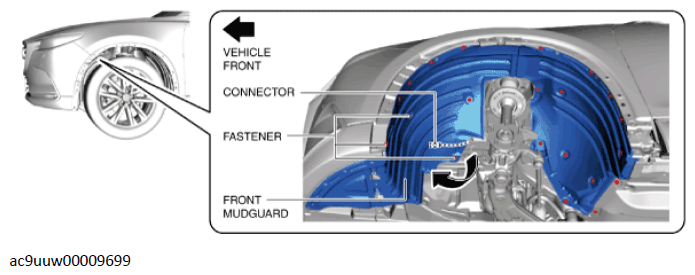

    G11433121Courtesy of MAZDA MOTORS CORP.
  2. Peel back the front mudguard and disconnect the connector.
