Telematics Communication Unit Bracket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    8. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    9. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    10. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    11. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    12. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    13. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    14. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    15. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    16. Telematics communication unit (See TELEMATICS COMMUNICATION UNIT REMOVAL/INSTALLATION .)
    17. Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)

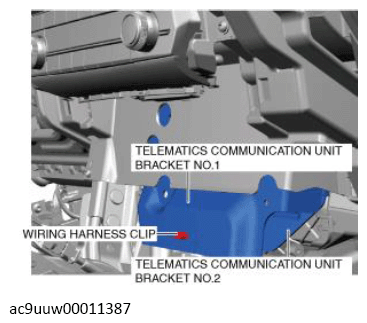

  3. Remove the wiring harness clip.
    G13702801Courtesy of MAZDA MOTORS CORP.

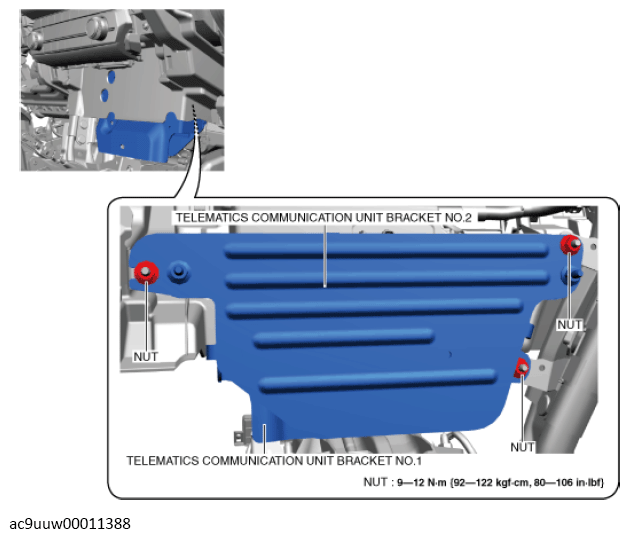

  4. Remove the nuts.
    Fig 1: Telematics Communication Unit Bracket No. 1 And No. 2 Nuts With Torque Specification
    G13702802Courtesy of MAZDA MOTORS CORP.

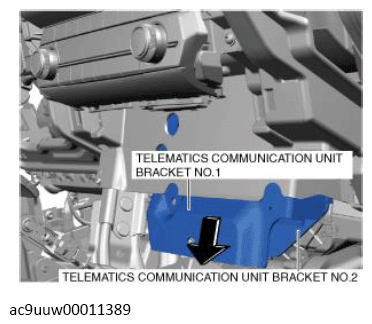

  5. Move the telematics communication unit bracket No. 1 and the telematics communication unit bracket No. 2 in the direction of arrow shown in the figure.
    G13702803Courtesy of MAZDA MOTORS CORP.
  6. Remove the telematics communication unit bracket No. 1 and the telematics communication unit bracket No. 2 as a single unit.

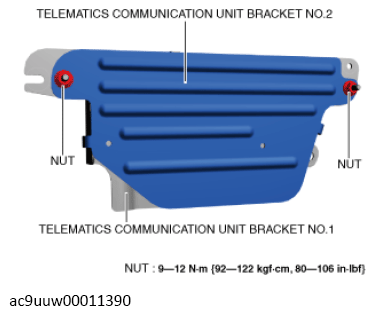

  7. Remove the nuts.
    Fig 2: Telematics Communication Unit Bracket No. 1 And No. 2 Nuts With Torque Specification
    G13702804Courtesy of MAZDA MOTORS CORP.
  8. Remove the telematics communication unit bracket No. 2.
  9. Install in the reverse order of removal.
