Oil Pump Installation Note

Install the oil pump using the following procedure.

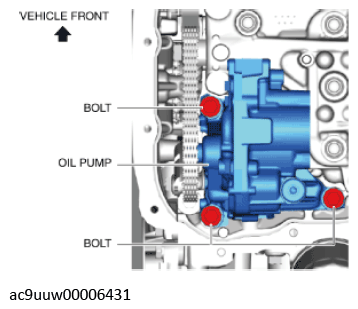

Temporarily tighten the three bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

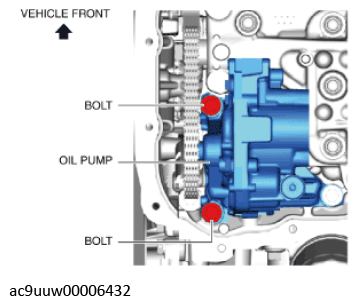

Tighten the two bolts shown in the figure to the specified torque.

Courtesy of MAZDA MOTORS CORP.

NOTE:

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}

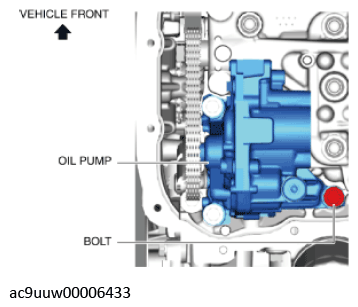

Finally, tighten the bolt shown in the figure to the specified torque.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
