| 1 |

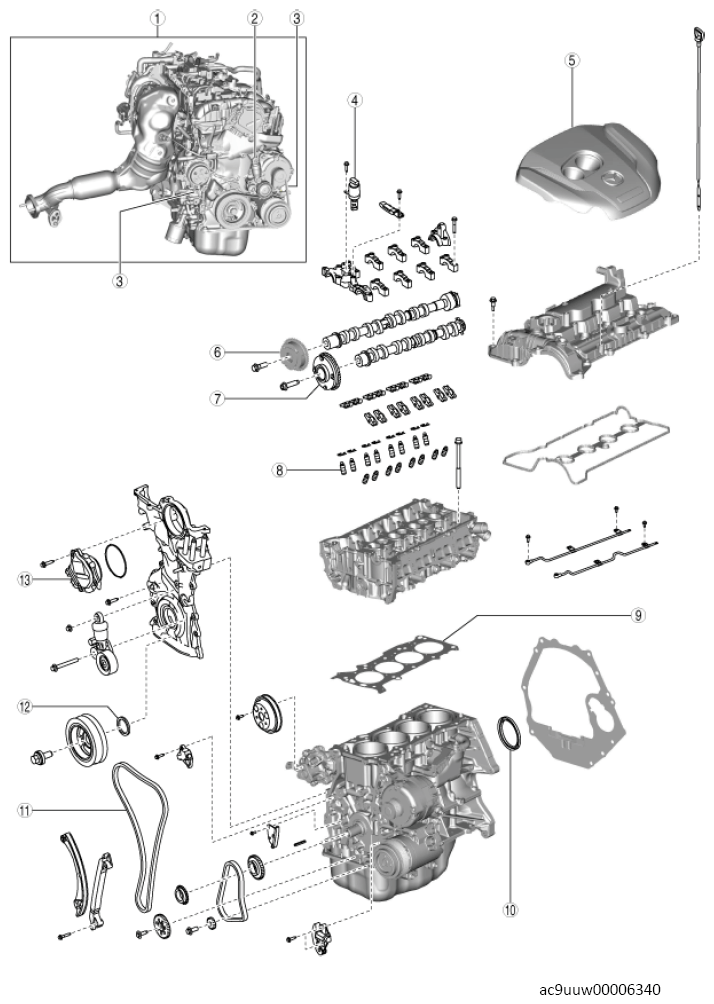

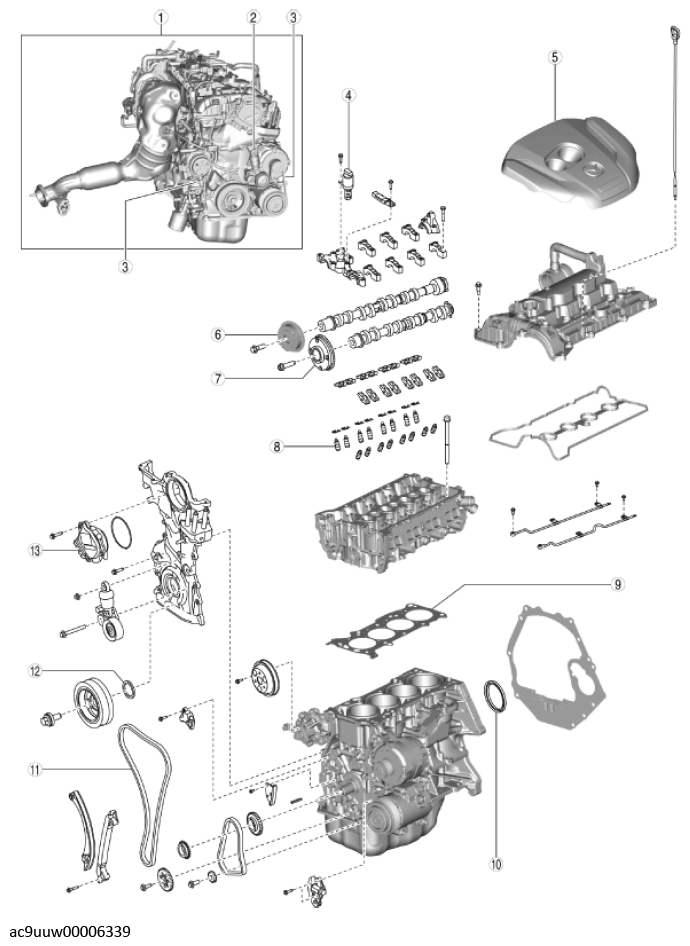

Engine
(See ENGINE TUNE-UP .)
(See COMPRESSION INSPECTION .)
(See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
(See ENGINE REMOVAL/INSTALLATION .)
(See ENGINE DISASSEMBLY/ASSEMBLY .) |
| 2 |
Drive belt auto tensioner
(See DRIVE BELT AUTO TENSIONER INSPECTION .)
(See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .) |
| 3 |
Drive belt
(See DRIVE BELT INSPECTION .)
(See DRIVE BELT REMOVAL/INSTALLATION .) |
| 4 |
OCV
(See OIL CONTROL VALVE (OCV) INSPECTION .)
(See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .) |
| 5 |
Plug hole plate
(See PLUG HOLE PLATE REMOVAL/INSTALLATION .) |
| 6 |
Hydraulic variable valve timing actuator
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .)
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .) |
| 7 |
Electric variable valve timing actuator
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .)
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .) |
| 8 |
HLA
(See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION .)
(See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION .) |
| 9 |
Cylinder head gasket
(See CYLINDER HEAD GASKET REPLACEMENT .) |
| 10 |
Rear oil seal
(See REAR OIL SEAL REPLACEMENT .) |
| 11 |
Timing chain
(See TIMING CHAIN REMOVAL/INSTALLATION .) |
| 12 |
Front oil seal
(See FRONT OIL SEAL REPLACEMENT .) |
| 13 |
Electric variable valve timing motor/driver
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION .)
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .) |
