No. 4 Engine Mount: Notes

CAUTION:

Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

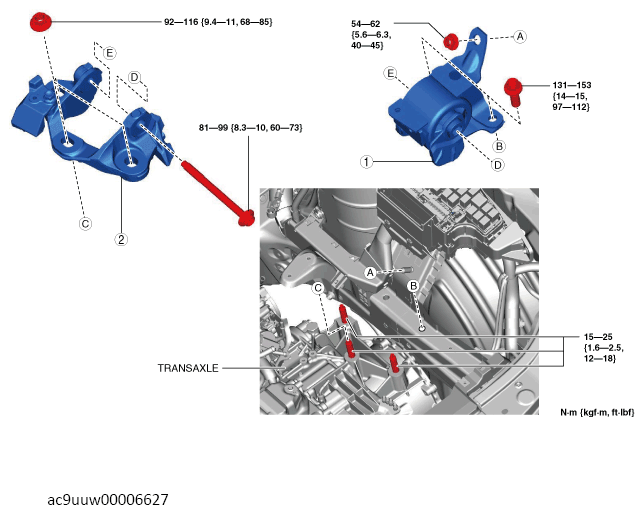

Fig 1: No. 4 Engine Mount Components With Torque Specification

G13107141

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	No. 4 engine mount rubber) See NO. 4 ENGINE MOUNT RUBBER REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT RUBBER INSTALLATION NOTE .)
2	No. 4 engine mount bracket) See NO. 4 ENGINE MOUNT BRACKET REMOVAL NOTE .) (See NO. 4 ENGINE MOUNT BRACKET INSTALLATION NOTE .)
