Ignition coil/ion sensor Removal Note

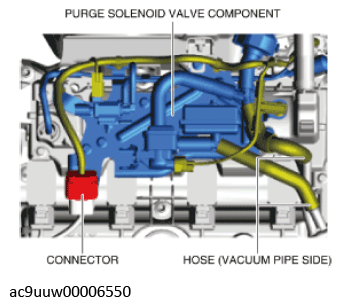

  1. Disconnect the connector and hoses shown in the figure.
    G11436404Courtesy of MAZDA MOTORS CORP.

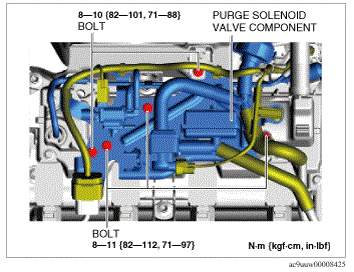

  2. Remove the bolts shown in the figure.
    Fig 1: Purge Solenoid Valve Component Bolts With Torque Specification
    G11436405Courtesy of MAZDA MOTORS CORP.

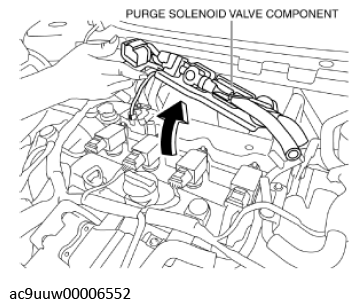

  3. Set the purge solenoid valve component aside as shown in the figure.
    G11436406Courtesy of MAZDA MOTORS CORP.
  4. Remove the ignition coil/ion sensors.
