Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the clip.

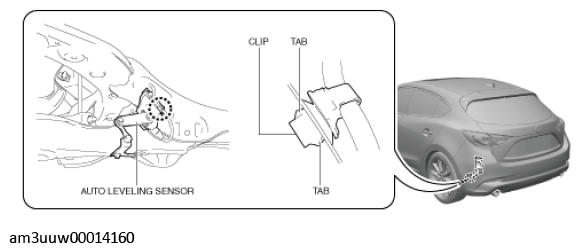

Fig 1: Locating Auto Leveling Sensor Clip
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

Fig 2: Disconnecting Auto Leveling Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Remove the auto leveling sensor.

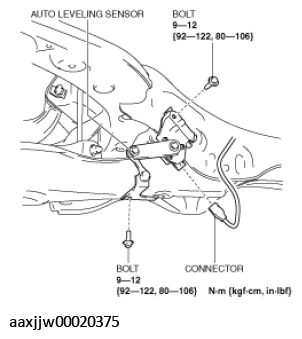

Fig 3: Removing Auto Leveling Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Perform headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
