Commander Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The connectivity master unit (CMU) determines the presence/non-presence of a commander switch and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery terminal is connected.
  • If the negative battery terminal is connected while the connectivity master unit (CMU) has recorded the non-presence of the commander switch and thereafter a commander switch is installed, the installed commander switch will not operate.
  • When installing or removing the commander switch, always disconnect the negative battery terminal, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the connectivity master unit (CMU) to record the presence/non-presence of the commander switch.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)

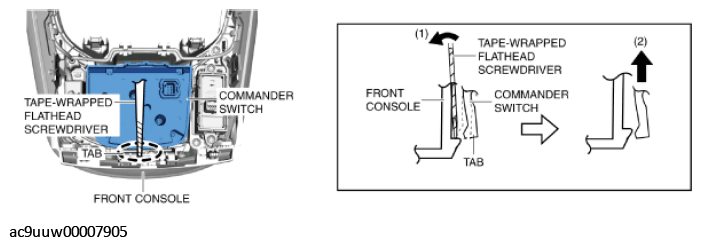

  3. While pressing tab of the commander switch in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the commander switch in the direction of the arrow (2) shown in the figure to detach tabs of the commander switch from the front console.
    Fig 1: Pulling Commander Switch
    G11430999Courtesy of MAZDA MOTORS CORP.

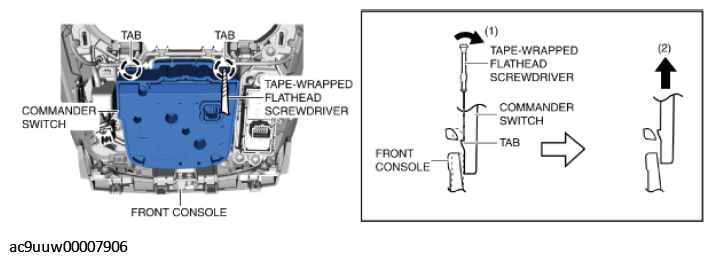

  4. While pressing tabs of the commander switch in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the commander switch in the direction of the arrow (2) shown in the figure to detach tabs of the commander switch from the front console.
    Fig 2: Detaching Tabs Of Commander Switch From Front Console
    G11431000Courtesy of MAZDA MOTORS CORP.

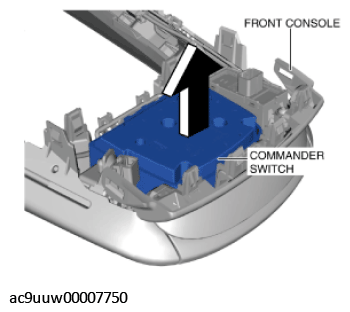

  5. Remove the commander switch in the direction of arrow shown in the figure.
    Fig 3: Removing Commander Switch
    G11431001Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
