Condenser Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    9. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    11. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    12. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    13. Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION .)
  3. Partially peel back the headliner.
  4. Disconnect the connector.

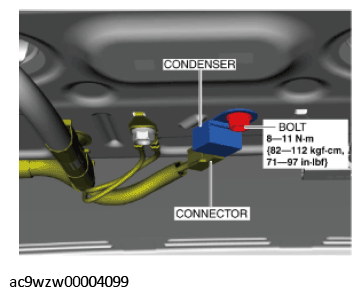

    Fig 1: Condenser, Connector And Bolt With Torque Specification
    G11431002Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the condenser.
  7. Install in the reverse order of removal.
