Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the auto leveling sensor.

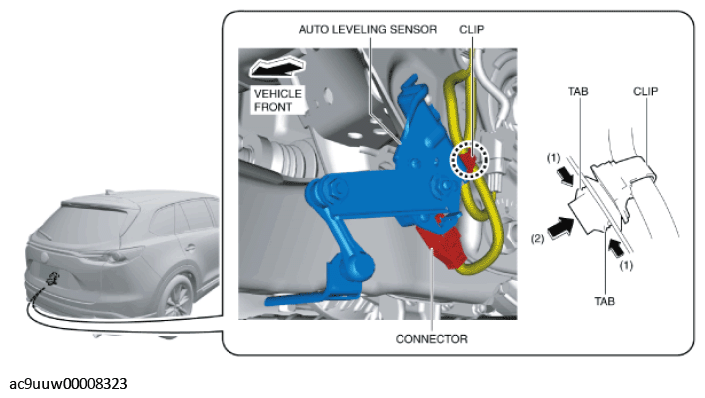

Fig 1: Detaching Clip Tabs From Auto Leveling Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the bolts.

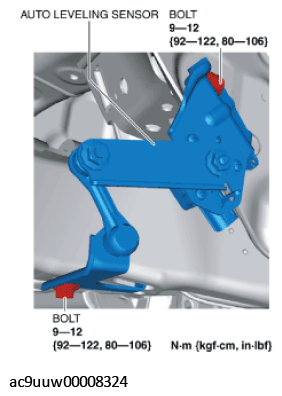

Fig 2: Auto Leveling Sensor And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Pull out the hooks from the rear crossmember.

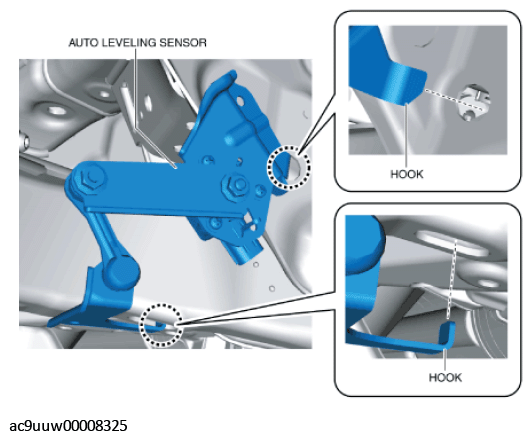

Fig 3: Auto Leveling Sensor And Hooks
Courtesy of MAZDA MOTORS CORP.
Remove the auto leveling sensor.
Install in the reverse order of removal.
Perform headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
