Front CROSSMEMBER Removal/Installation: Notes

Special Service Tool (SST)

49 T028 3A0 Ball joint puller set

Courtesy of MAZDA MOTORS CORP.

1. Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
3. Disconnect the intermediate shaft from the steering gear and linkage. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
4. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
   Fig 1: Front ABS Wheel-Speed Sensor, Clips And Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
5. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
6. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
7. Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
8. Remove the fasteners and clips shown in the figure and partially peel back the front over fender.

   Courtesy of MAZDA MOTORS CORP.

9. Remove the screws and the fasteners shown in the figure and set the front mudguard aside.

   Courtesy of MAZDA MOTORS CORP.

10. Remove the front crossmember extension.
    Fig 2: Front Crossmember Extension Bolts With Torque Specification

    Courtesy of MAZDA MOTORS CORP.
11. Disconnect the front stabilizer control link (front stabilizer side).
    Fig 3: Front Stabilizer Control Link Bolts With Torque Specification

    Courtesy of MAZDA MOTORS CORP.

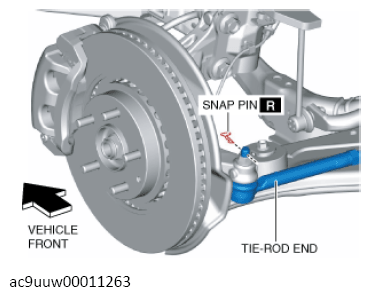

12. Remove the snap pin from the tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

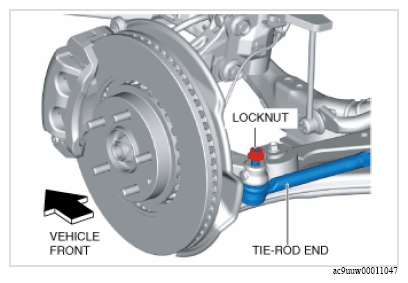

13. Loosen the locknut of the tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    47-59 N.m {4.8-6.0 kgf.m, 35-43 ft.lbf}

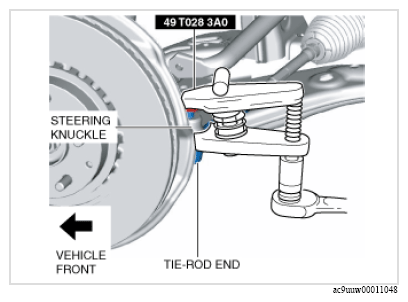

14. Using the SST, disconnect the steering knuckle and tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

15. Remove the locknut from the tie-rod end.

    Courtesy of MAZDA MOTORS CORP.

16. Disconnect the front lower arm ball joint. (See Front Lower Arm Ball Joint Installation Note .)

    Courtesy of MAZDA MOTORS CORP.

17. Remove the bracket plate (No. 1). (2WD)

    Courtesy of MAZDA MOTORS CORP.

18. Remove the deadweight and bracket plate. (AWD)

    Courtesy of MAZDA MOTORS CORP.

19. Remove the plate.
    Fig 4: Plate, Fastener And Bolts With Torque Specification (2WD, AWD)

    Courtesy of MAZDA MOTORS CORP.
20. Disconnect the hanger rubber from the front crossmember and set it aside.

    Courtesy of MAZDA MOTORS CORP.

21. Remove in the order indicated in the table.
22. Install in the reverse order of removal. (See Suspension Links Installation Note .)
23. When replacing the front crossmember, inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

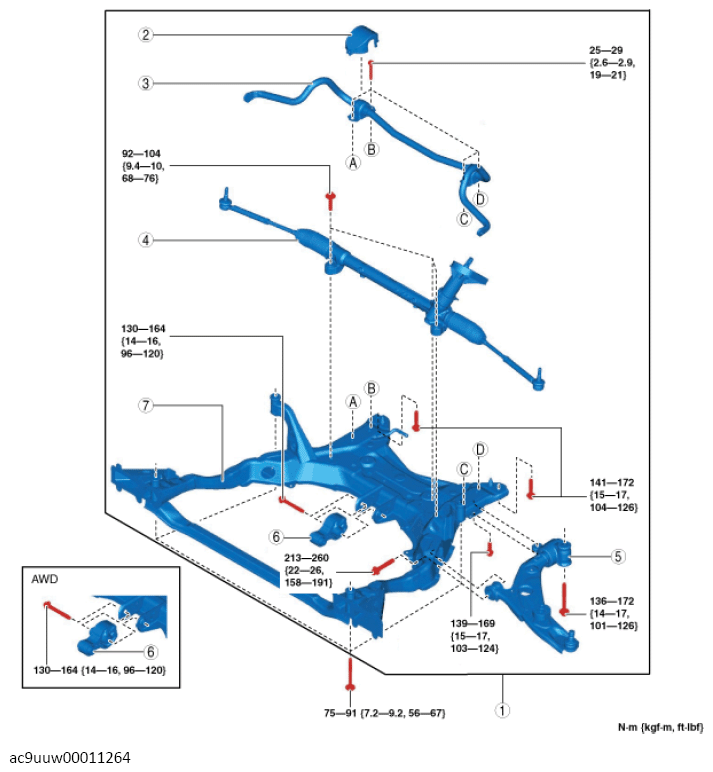

    Fig 5: Front Crossmember Components With Torque Specification
