Sensor Cover Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

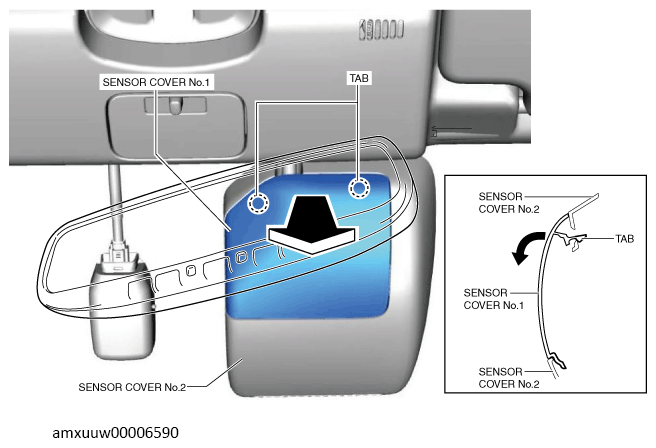

  2. Move sensor cover No. 1 in the direction of the arrow shown in the figure and detach the tabs from sensor cover No. 2.
    G13490638Courtesy of MAZDA MOTORS CORP.

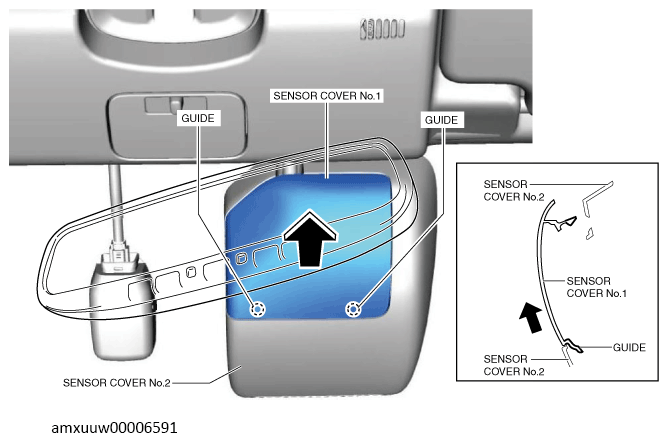

  3. Move sensor cover No. 1 in the direction of the arrow shown in the figure and remove it while detaching the guides.
    G13490639Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
    G13490640Courtesy of MAZDA MOTORS CORP.

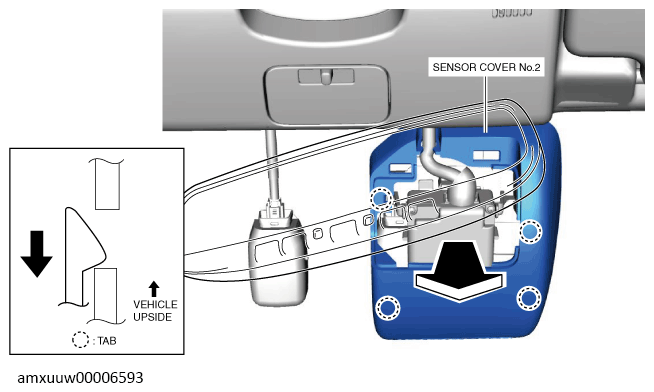

  5. Move sensor cover No. 2 in the direction of the arrow shown in the figure and remove it while detaching the tabs.
    G13490641Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
