Accessory Socket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

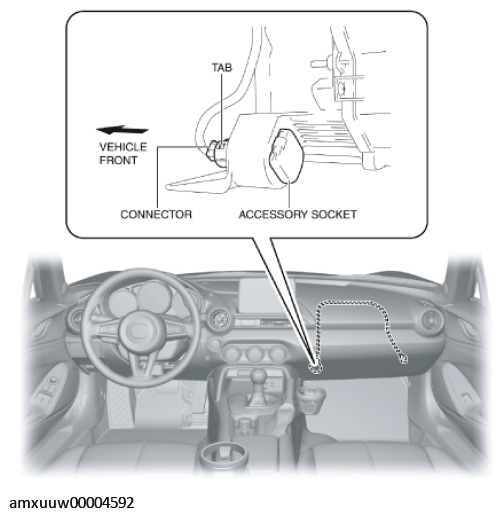

  2. Disconnect the connector.
    G11278753Courtesy of MAZDA MOTORS CORP.

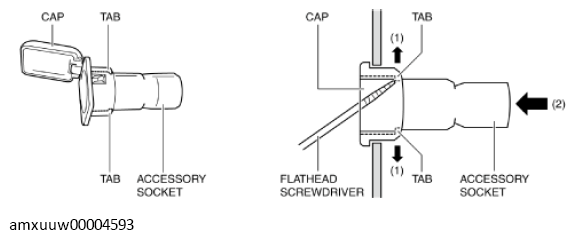

  3. While pressing the cap tabs in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, press the accessory socket in the direction of the arrow (2) to detach the cap tabs from the accessory socket.
    G11278754Courtesy of MAZDA MOTORS CORP.
  4. Detach all the tabs of the cap from the accessory socket and remove the accessory socket from the cap.

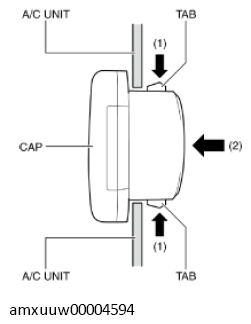

  5. While pressing the cap tabs in the direction of the arrows (1) shown in the figure, press the cap in the direction of the arrow (2) to detach the cap tabs from the A/C unit.
    G11278755Courtesy of MAZDA MOTORS CORP.
  6. Detach all the tabs of the cap from the A/C unit and remove the cap from the A/C unit.
  7. Install in the reverse order of removal.
