Battery Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

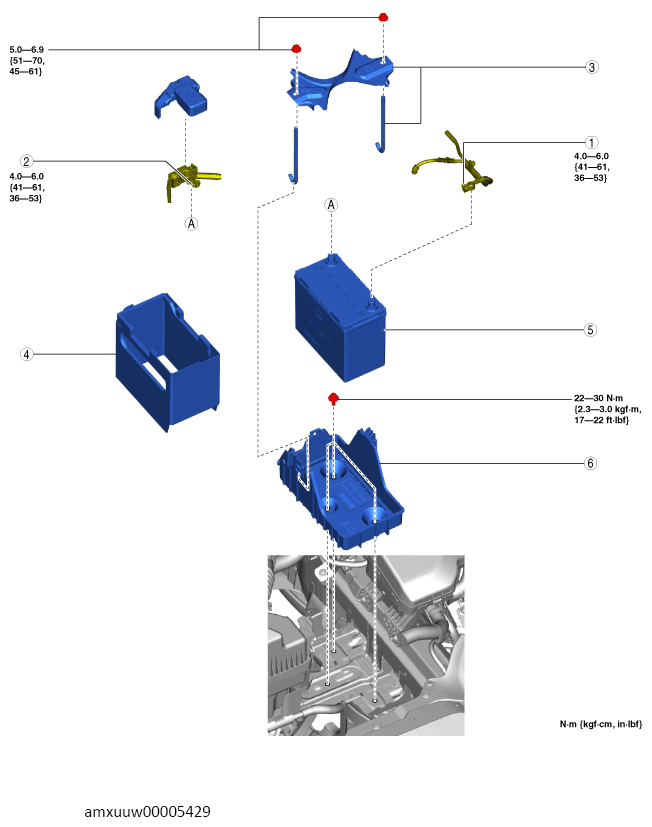

COMPONENT DESCRIPTION
| 1 | Negative battery cable (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See Negative Battery Cable Connection Note .) |
| 2 | Positive battery cable |
| 3 | Battery clamp (See Battery Clamp Installation Note .) |
| 4 | Battery box (See Battery Box Installation Note .) |
| 5 | Battery |
| 6 | Battery tray (See Battery Tray Removal Note .) (See Battery Tray Installation Note .) |
