Generator Installation Note

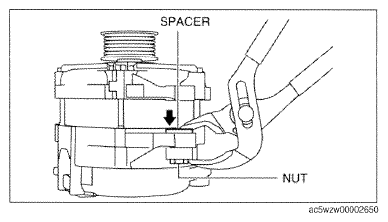

To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

Courtesy of MAZDA MOTORS CORP.
Align the generator bolt installation holes on the engine and generator sides.
Set the wiring harness bracket to the installation position.
Temporarily tighten the generator bolts (upper and lower).
Tighten the generator bolts in the order shown in the figure.

Fig 1: Generator Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}

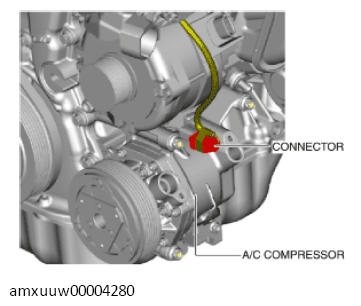

Connect the A/C compressor connector.
