Home >> Mazda >> 2021 >> MX-5 Miata Club, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting - Engine Control >> Quick Diagnostic Chart

Quick Diagnostic Chart

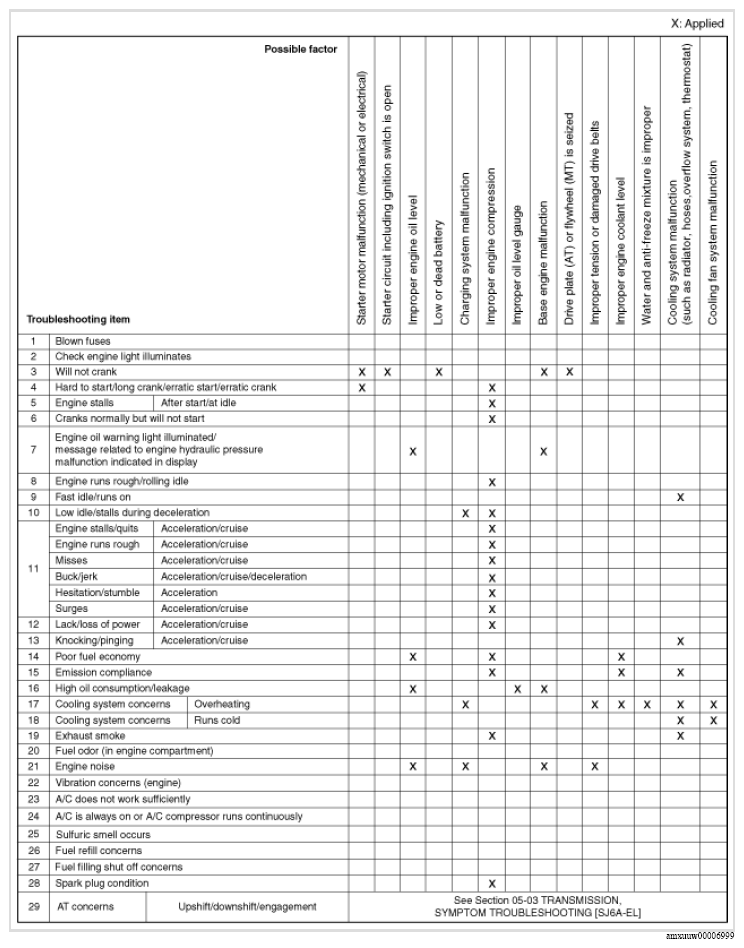

G13487834Courtesy of MAZDA MOTORS CORP.

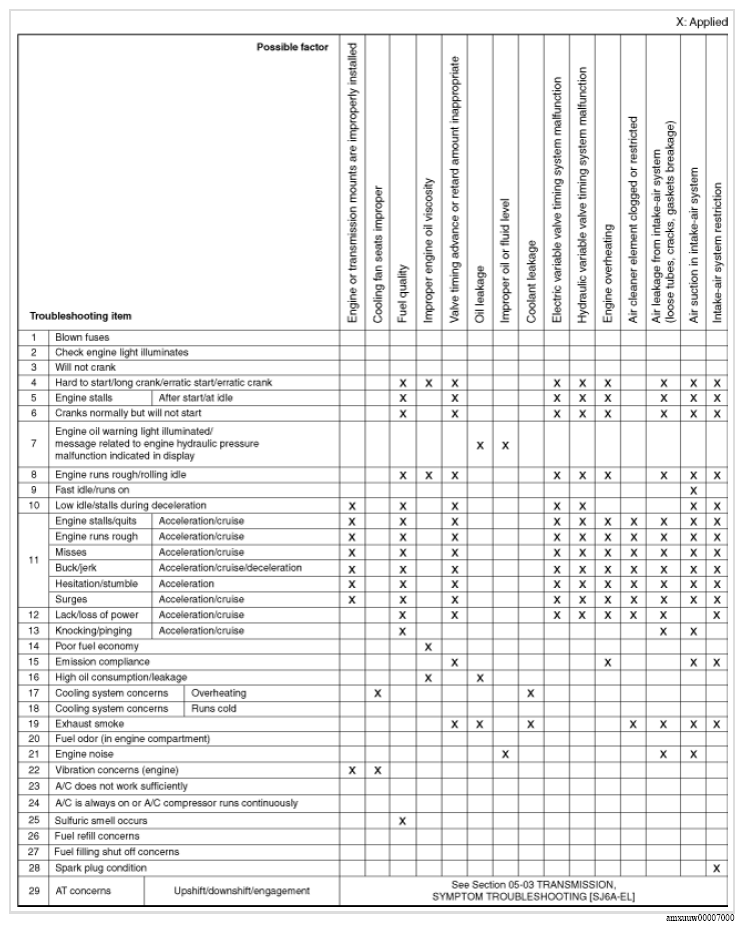

G13487835Courtesy of MAZDA MOTORS CORP.

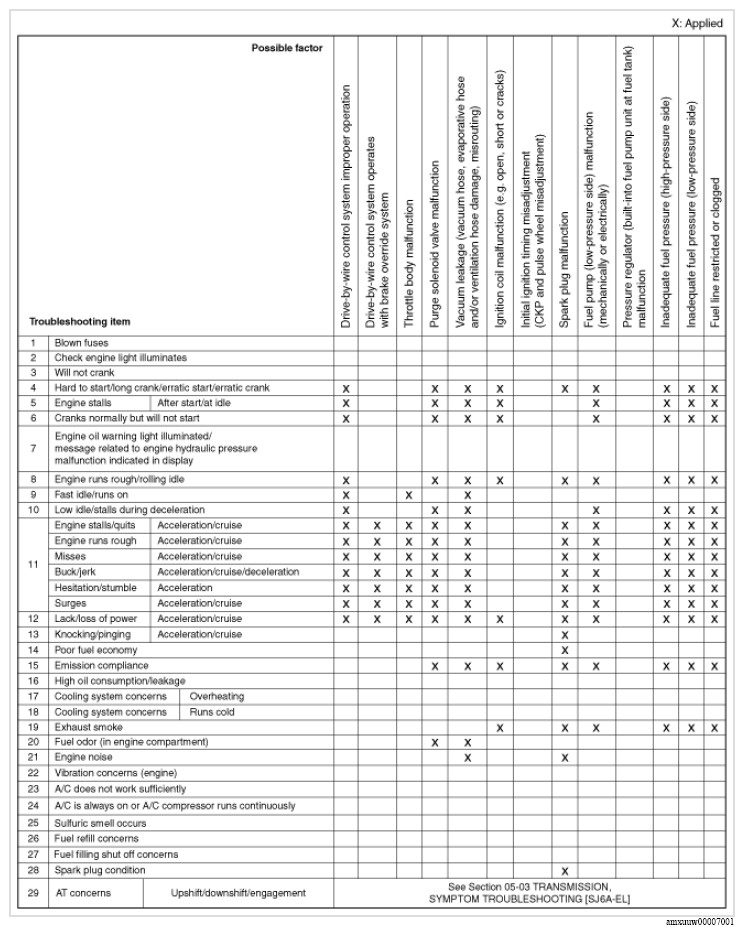

G13487836Courtesy of MAZDA MOTORS CORP.

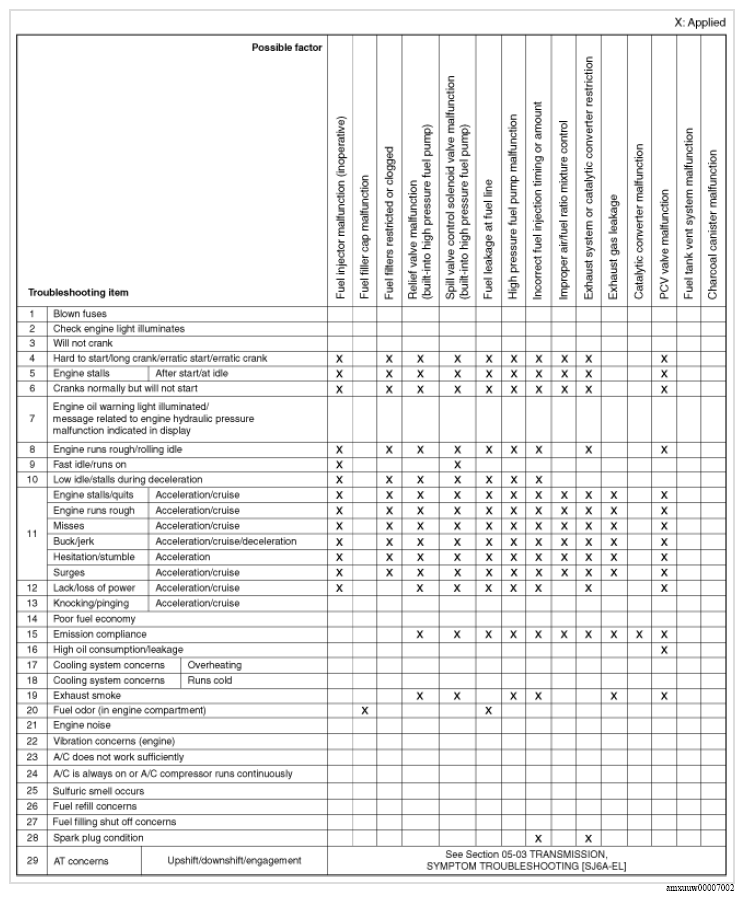

G13487837Courtesy of MAZDA MOTORS CORP.

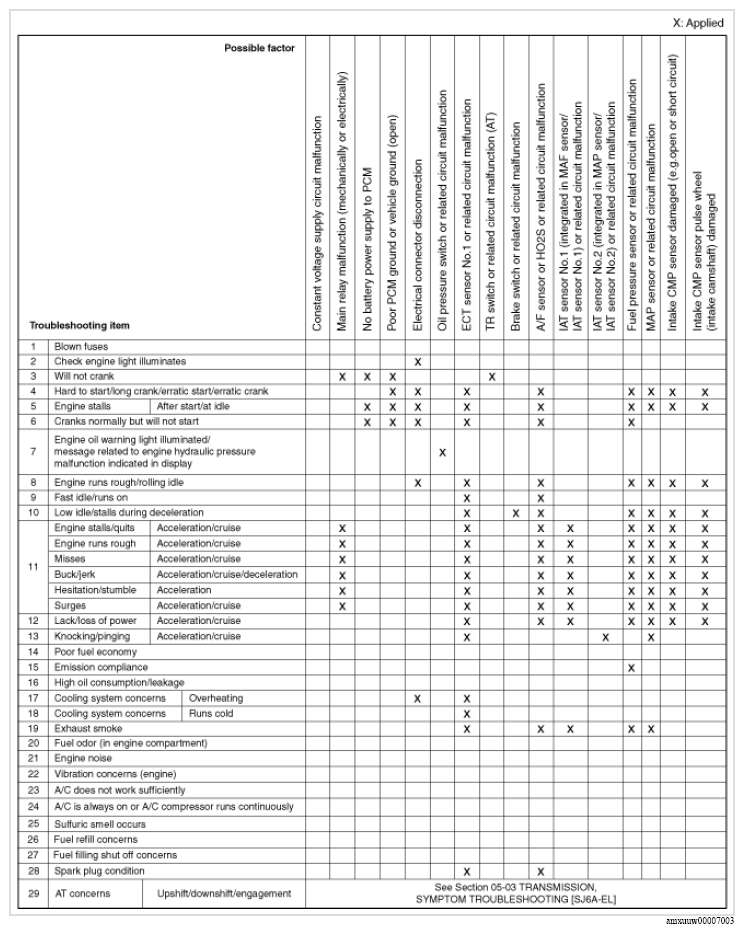

G13487838Courtesy of MAZDA MOTORS CORP.

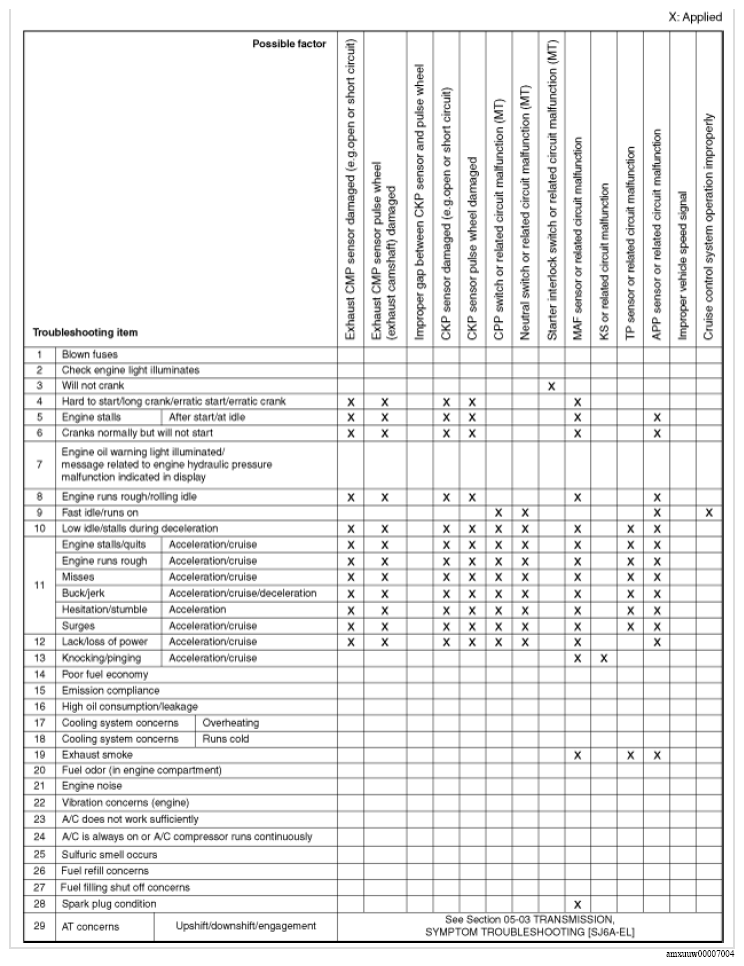

G13487839Courtesy of MAZDA MOTORS CORP.

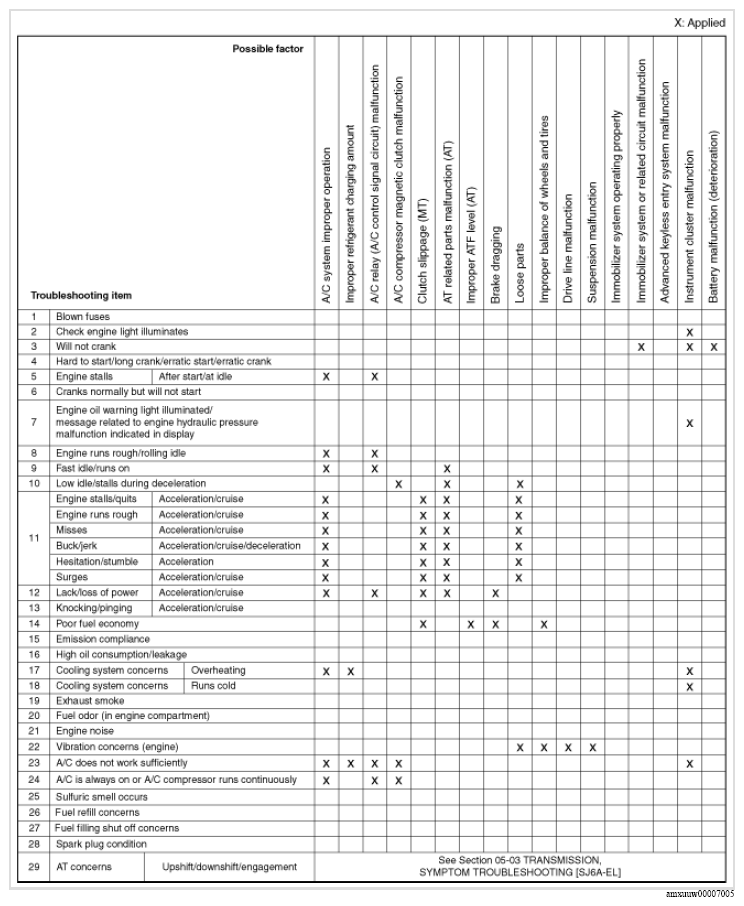

G13487840Courtesy of MAZDA MOTORS CORP.

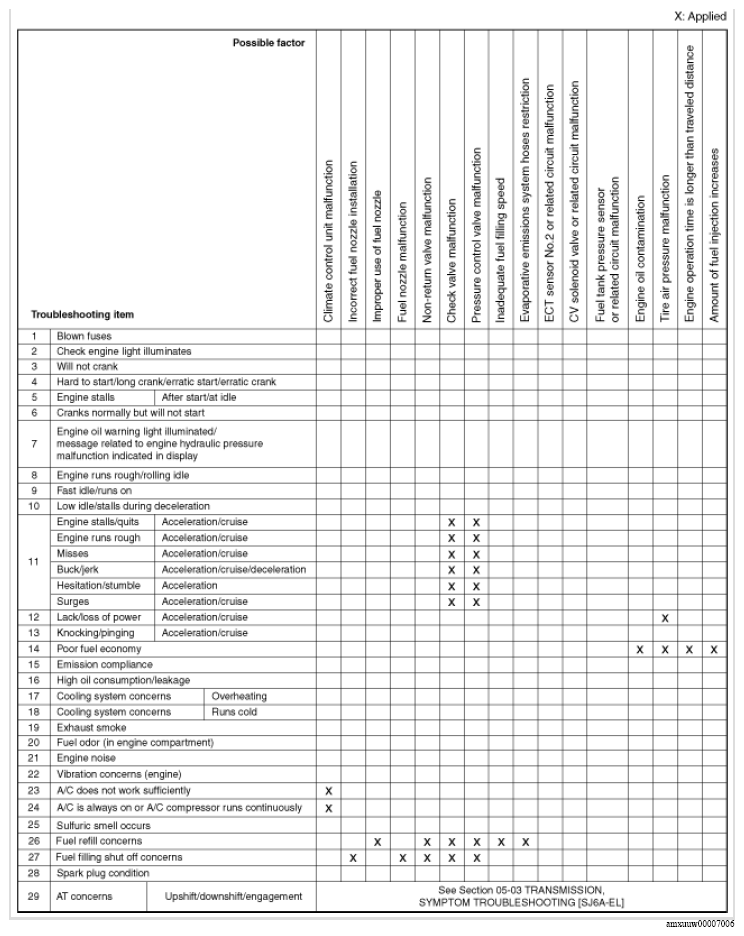

G13487841Courtesy of MAZDA MOTORS CORP.
