Remote Transmitter Disassembly/Assembly: Assembly

1. Insert a new battery (CR2032) into the remote transmitter so that the positive pole is facing up.

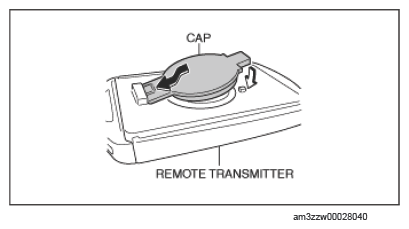

2. Install the cap.

   Courtesy of MAZDA MOTORS CORP.

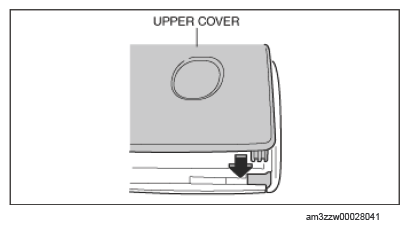

3. Install the upper cover.

   Courtesy of MAZDA MOTORS CORP.

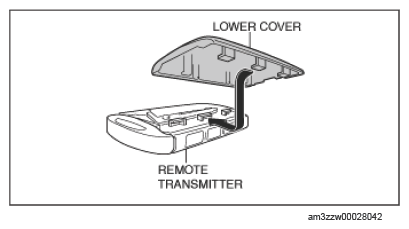

4. Insert the tabs of the lower cover into the slots of the remote transmitter and install the lower cover.

Courtesy of MAZDA MOTORS CORP.
