Front Power Window Motor Inspection: LH

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
2. Disconnect the power window motor connector. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)

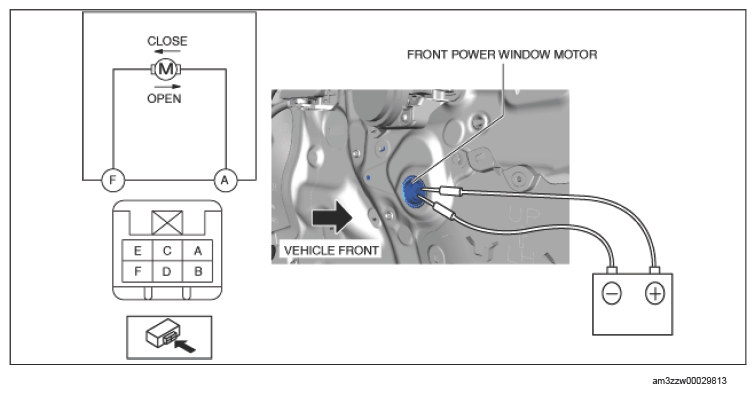

3. Apply battery positive voltage and connect the ground to power window motor terminals A and F, and then inspect the power window motor operation.

B+ Terminal	Ground Terminal	Operation
A	F	Close
F	A	Open

Courtesy of MAZDA MOTORS CORP.

• If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
