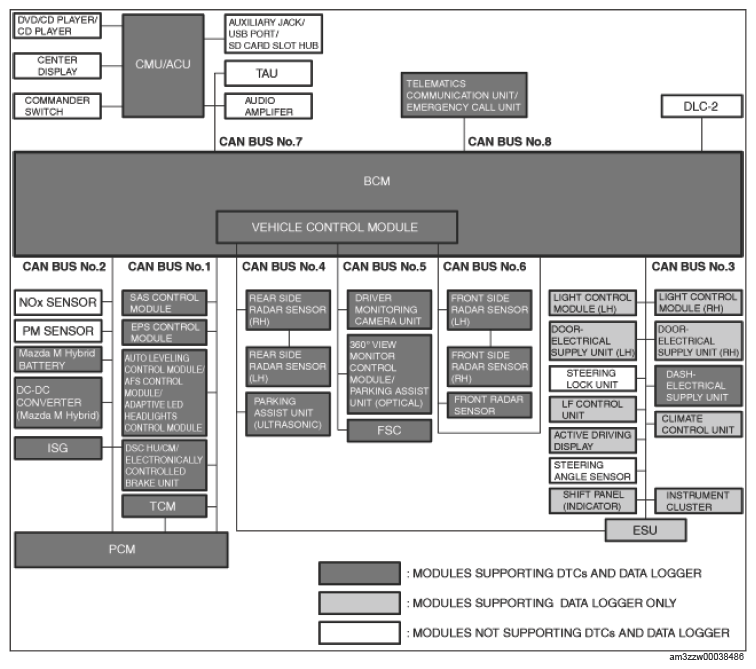

Topological figure: Notes

• A Controller Area Network (CAN) system has been adopted which performs transmission/reception of multiple module signals.
• There are multiple CAN buses in the vehicle and they are relayed by the body control module (BCM).

Courtesy of MAZDA MOTORS CORP.

*: Differs depending on availability of each module, based on the specification.
