Bolt Installation Note

WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the bolts in the order of (1), (2), (3) and (4).

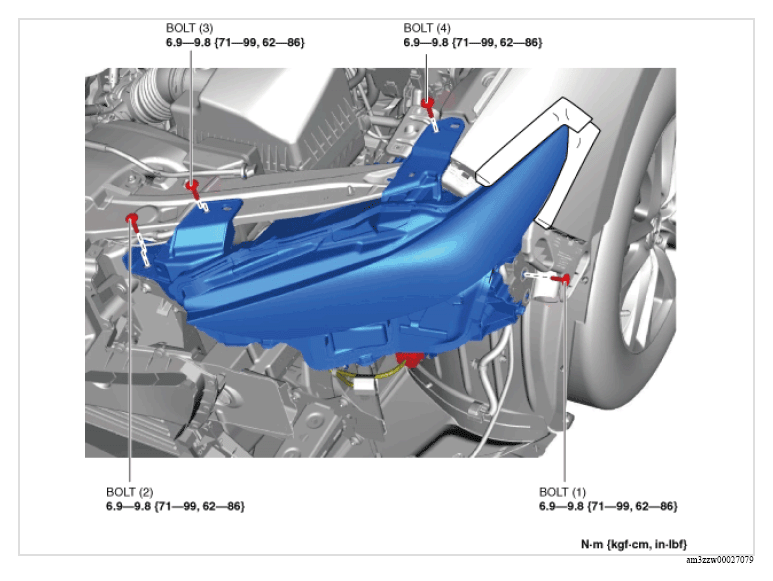

Fig 1: Front Combination Light Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
