Home >> Mazda >> 2022 >> 3 Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts >> Adjuster Anchor Removal/Installation >> Bolt Installation Note

Bolt Installation Note

  1. Tighten the bolts in the order shown in the figure.

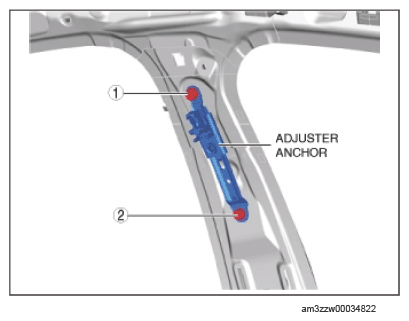

    Fig 1: Adjuster Anchor Bolts Tightening Sequence
    G14582588Courtesy of MAZDA MOTORS CORP.
