Revolution Sensor Inspection
>>

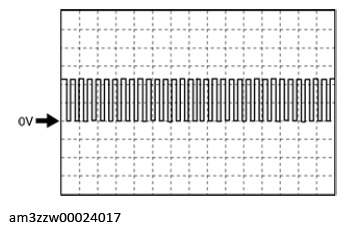

Oscilloscope setting
Oscilloscope setting
2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
2 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Racing (Engine speed: 2, 000 RPM)
