Inspection Using An Oscilloscope (Reference)
>>
Engine Oil Control Signal

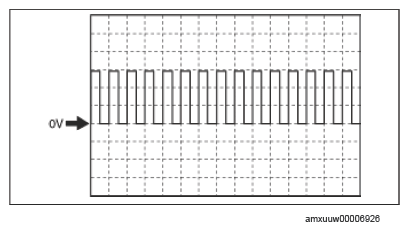

Engine Oil Control Signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1CK (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 5 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
Courtesy of MAZDA MOTORS CORP.
