Transfer Oil Replacement [C66MX-R]

Replacement Part

Oil and Chemical Type

1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
2. Remove the drain plug with the washer.

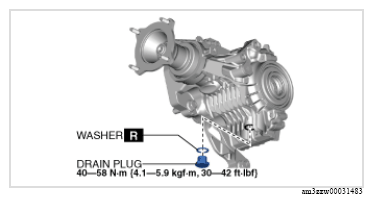

   Fig 1: Drain Plug With And Washer With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
3. Drain the Transfer oil.
4. Install the drain plug with a new washer.
   Fig 2: Drain Plug With And Washer With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
5. Remove the bracket. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
6. Remove the heat shield. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
7. Remove the transfer bracket. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
8. Remove the oil level plug and washer, and then add transfer oil from the oil level plug installation hole.

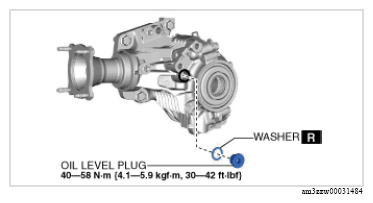

   Fig 3: Oil Level Plug And Washer With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

   Transfer oil type	Transfer oil capacity (approx. quantity)
   MAZDA LONG LIFE HYPOID GEAR OIL SG1	0.35 L {0.37 US qt, 0.31 Imp qt}

9. Install the oil level plug with a new washer.
   Fig 4: Oil Level Plug And Washer With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
10. Install the transfer bracket. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
11. Install the heat shield. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
12. Install the bracket. (See TRANSFER REMOVAL/INSTALLATION [C66MX-R] .)
13. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
