Generator Disassembly/Assembly (VIN M): Notes

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Generator type A

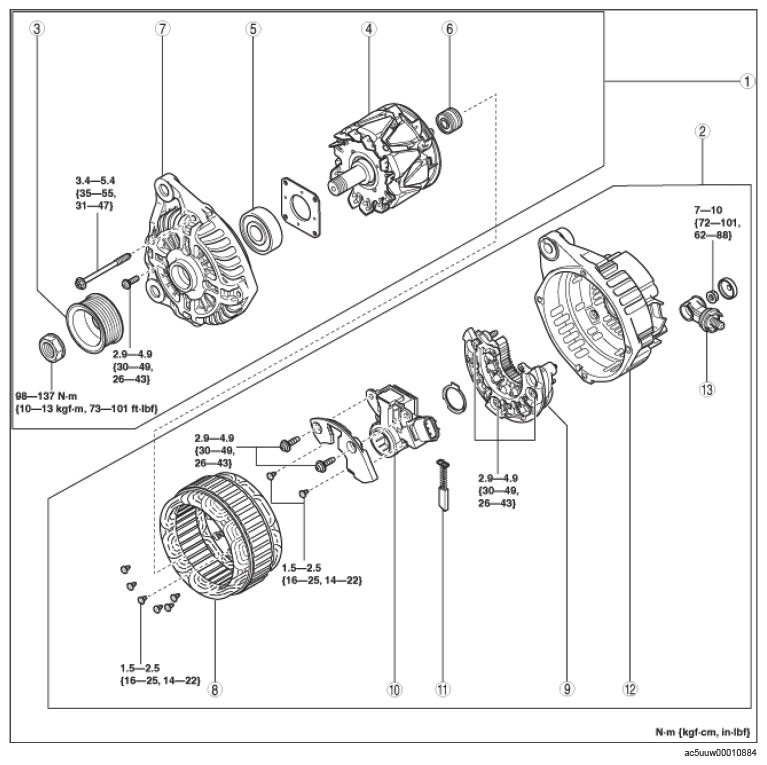

Fig 1: Generator Components Location With Torque Specification - Type A (Skyactiv-G 2.5 - VIN M)

Courtesy of MAZDA MOTORS CORP.

Generator type B

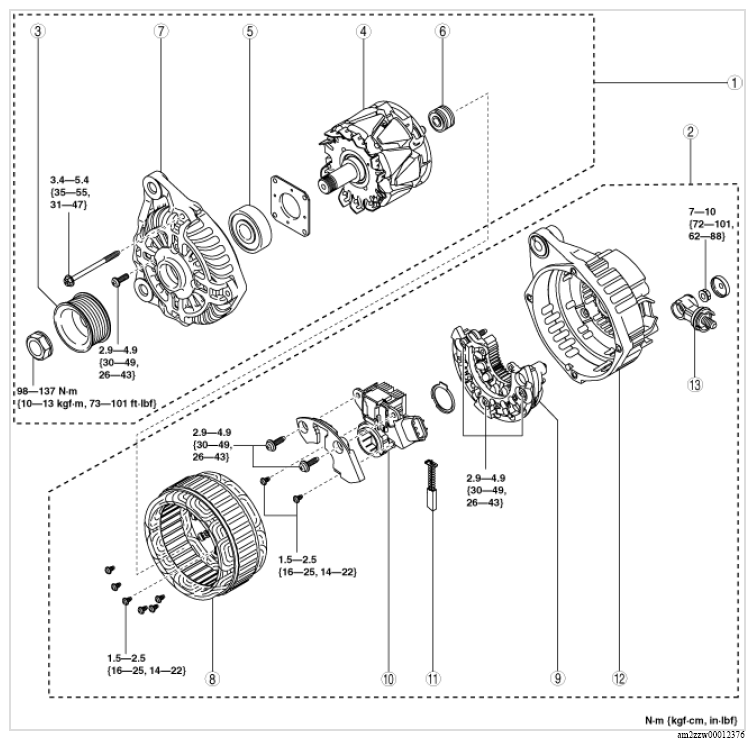

Fig 2: Generator Components Location With Torque Specification - Type B (Skyactiv-G 2.5 - VIN M)

Courtesy of MAZDA MOTORS CORP.
