Telematics Communication Unit Removal/Installation: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
- Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
- Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
- Remove the bolts.
- Remove the bracket A.

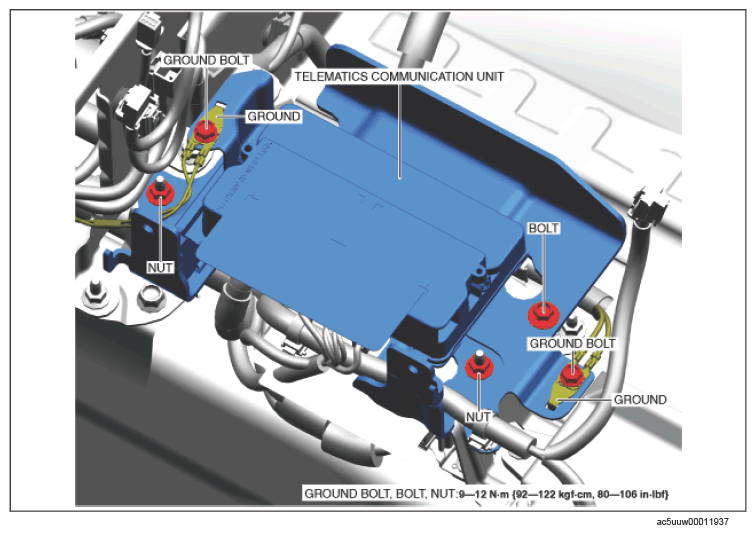

- Remove the ground bolts.
- Remove the ground.
- Remove the bolt.
- Remove the nuts.

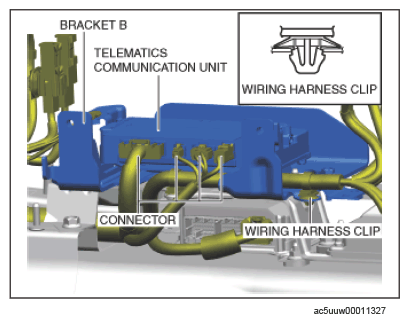

- Remove the wiring harness clip.
- Disconnect the connectors.
- Remove the telematics communication unit and bracket B as a single unit.

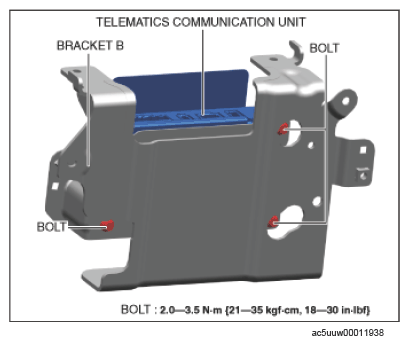

- Remove the bolts.
- Remove the telematics communication unit from bracket B.
- Install in the reverse order of removal.
- If the telematics communication unit is replaced, perform the procedure after the telematics communication unit replacement. (See Procedure after Telematics Communication Unit Replacement .)
